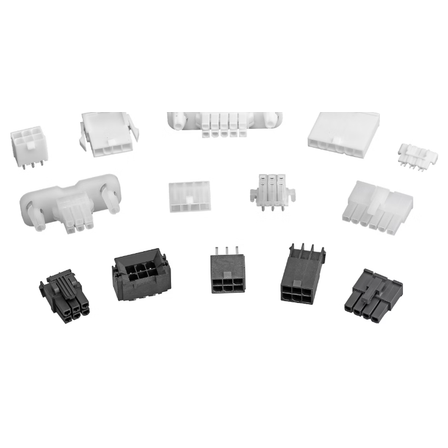

Mini-Fit connector
The polarized mating shape ensures that the header and receptacle cannot be mismatched!
The "Mini-Fit Connector" offers a maximum operating temperature of +125°C and is equipped with a double crimp tool, making it suitable for board-to-board, wire-to-board, and wire-to-wire configurations. Connectors can be mated in locations out of the operator's reach. It ensures that headers and receptacles are not mismated. Additionally, it guarantees complete mating of the connector with an easy-to-use thumb latch, preventing accidental disconnection of the connector. 【Features】 ■ Self-alignment interface ■ Polarized mating shape ■ Positive lock housing *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■Current: Maximum 13.0A ■Pitch: 4.20 ■Wire AWG: 16-28 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
