High Current Connector Electrification PowerWize BMI Connector
Additional board maintenance is possible! Ensures minimization of contact resistance between the wire and crimp barrel.

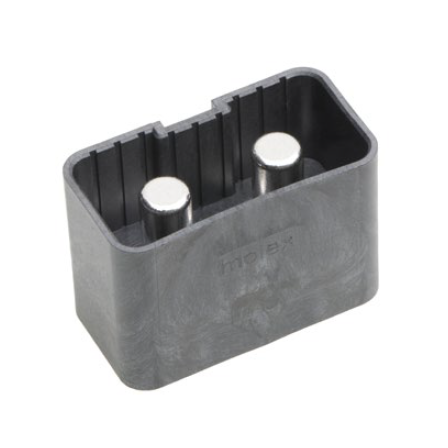

The "PowerWize BMI Connector" utilizes Molex's COEUR socket technology to achieve high current transmission through right-angle/vertical headers. It features a blind-mating design available in three sizes: 3.40 millimeters (75.0A), 6.00 millimeters (110.0A), and 8.00 millimeters (185.0A), allowing for reliable connections even in hard-to-see, tight spaces. The 8.00 millimeter connector offers a vertical header option. 【Features】 ■ Provides an option to connect vertical headers and panel mount receptacles as needed ■ Allows for +/-2.00 millimeter radial float in panel mount receptacles to mitigate tolerance stacking issues ■ Supports correct orientation for right-angle headers when mounted on printed circuit boards or busbars *For more details, please download the PDF or feel free to contact us.
basic information
【Other Features】 ■ Provides terminal back-out guarantee ■ Low contact resistance, minimal voltage drop, and reduced heat generation at contact surfaces ■ Ensures receptacle is installed in the correct orientation ■ Offers options for attaching pins to various substrates, enhancing design and manufacturing flexibility ■ Prevents mismatching of receptacles and headers ■ Provides design and manufacturing flexibility *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
