Centrality High Current Pin & Socket Interconnection System
Multiple types of circuit board stacking designs are possible, providing flexibility in design!

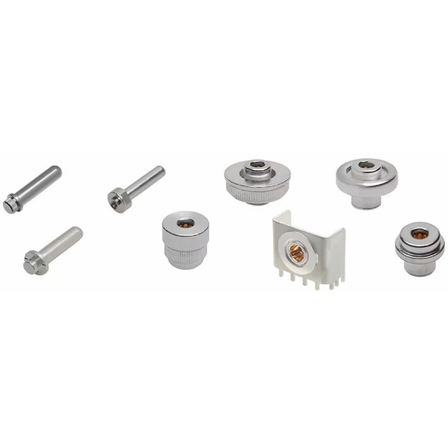

The "Sentrality High Current Pin & Socket Interconnection System" is a product equipped with a self-adjusting function of +/-1.00mm to alleviate cumulative misalignment in socket assemblies, allowing for three types of mating configurations: vertical, horizontal, and rear mating. It provides the necessary flexibility required in product design and contributes to the manufacturing of products with excellent electrical performance. The socket position self-adjusts due to the rebound of the wave spring. 【Features】 ■ Low contact resistance ■ Adopts a conical socket assembly, reducing dimensions compared to many equivalent products ■ Applicable to board-to-board connection applications with height restrictions ■ The socket can move freely in the radial direction by +/-1.00mm within the assembly, ensuring that deformation of the contact beam during mating operations is reliably avoided *For more details, please download the PDF or feel free to contact us.
basic information
【Other Features】 - High design freedom for pin positioning, compatible with various substrates, providing design flexibility. - Various methods for mounting connectors to the substrate can be selected, offering flexibility in the manufacturing process. - Mitigates cumulative cross issues. - Light angle socket assemblies and light angle pin assemblies can be reliably implemented in the correct position and orientation on the substrate. *For more details, please download the PDF or feel free to contact us.
