2D/3D Laser Projector for Electronic Components and PCB Assembly
Actual size projection of component mounting positions on the PCB. Reduces assembly errors and rework, standardizes quality. Demonstrations are also possible!
**What is the ZLP Series?** The ZLP series is a laser projector that directly projects contour lines and positional information based on 2D and 3D CAD drawings onto the workpiece at actual size. It displays the positions of parts, screw locations, and work procedures, providing non-contact assistance for assembly and placement tasks. **Main Applications** - PCB assembly - Operator guidance - Battery module assembly **Benefits of Implementation** - Streamlines the confirmation process for part placement and mounting directions - Reduces placement errors and rework - Minimizes variations in work quality and supports operator training **Model Selection and Demonstration** We will recommend the appropriate model from ZLP1, ZLP2, or ZLP2-HighPower based on your application and installation conditions. Demonstrations are also available, so please feel free to consult with us.
basic information
● 2D and 3D drawings projected in actual size using laser ● Accuracy ±0.1mm/m (±0.1mm accuracy per 1m projection distance) ● Projection range up to 10m x 10m, maximum projection distance of 20m, capable of supporting large workpieces by linking multiple units ● High-output/high-brightness green laser with excellent visibility ● Compatible with foot switches, remote controls, barcode readers, etc. *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Model number/Brand name
ZLP Series (ZLP1/ZLP2/ZLP2-HighPower) | Z-LASER
Applications/Examples of results
●PCB Assembly: Projecting component outlines onto the substrate to guide placement positions ●Operator Guidance: Projecting screw positions, component outlines, and work procedures onto the work surface ●Battery Manufacturing and Assembly: Supporting module assembly through outline projection ●Others: Assisting with component placement, pick & place, quality control, logistics, and positioning This supports the reduction of placement errors, shortening of assembly time, and improvement of quality.
Detailed information
-
[Operator Guidance] Directly project the position of screws, the outline of parts, and work procedures onto the work surface to support assembly tasks. This reduces mistakes and enhances the reliability of the process.
-
【Assembly of Printed Circuit Boards】 The outlines of components programmed as desired are projected directly onto the printed circuit board. This achieves improved product quality and cost reduction by shortening assembly time and preventing placement errors.
-
【Battery Manufacturing and Assembly】 Projects accurate contours and supports the precise assembly of battery modules. This ensures efficiency and quality assurance in battery production.
Related Videos
Line up（3）
| Model number | overview |
|---|---|
| ZLP1 | Compact, easy to operate, high cost performance. |

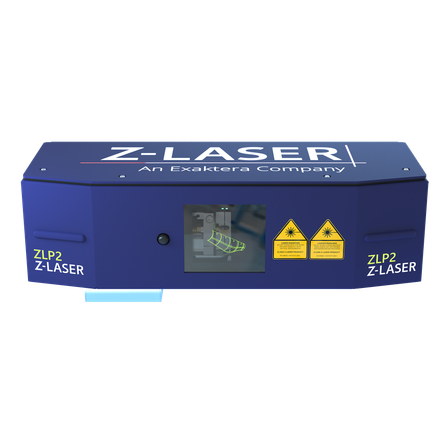

| ZLP2 | High-performance fiber-coupled laser light source |
| ZLP2-HighPower | High-output laser projector that delivers the highest level of visibility. |
