2D/3D Laser Projector for Metalworking and Sheet Metal Processing
Actual size projection of contours/positions for cutting, bending, and drilling. Reduces setup time and processing errors, stabilizing quality. Demonstrations are also possible!
【What is the ZLP Series】 The ZLP series is a laser projector that directly projects contour lines and positional information based on 2D and 3D CAD drawings onto metal parts and work surfaces at actual size. It displays contours for cutting, bending, and drilling, as well as setup procedures and inspection points, supporting processing, sorting, and inspection tasks in a non-contact manner. 【Main Applications】 ● Projection of contours for cutting, bending, and drilling ● Sorting of cut parts ● Contour inspection of formed parts ● Setup of tools, equipment, and machines 【Benefits of Implementation】 ● Streamlining alignment and setup tasks ● Reducing processing errors and material waste ● Supporting efficiency in inspection processes and improving quality 【Model Selection and Demonstration】 We will propose the most suitable model from ZLP1, ZLP2, and ZLP2-HighPower based on your application and installation conditions. Demonstrations are also available, so please feel free to consult with us.
basic information
● 2D and 3D drawings projected in actual size using laser ● Accuracy ±0.1mm/m (±0.1mm accuracy per 1m projection distance) ● Maximum projection area of 10m x 10m, maximum projection distance of 20m, capable of supporting large workpieces by linking multiple units ● High-output/high-brightness green laser with excellent visibility ● Compatible with foot switches, remote controls, barcode readers, etc. *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Model number/Brand name
ZLP Series (ZLP1/ZLP2/ZLP2-HighPower) | Z-LASER
Applications/Examples of results
【Examples of Applications in the Metal Processing Industry】 ● Cutting, Bending, Drilling: Projecting contour lines for processing ● Inspection of Formed Parts: Projecting reference contours to visualize distortions ● Part Sorting: Highlighting cut parts in order ● Equipment Setup: Displaying positions and procedures for support members, clamps, and parts ● Measurement and Inspection: Displaying measurement points and tools in sequence This helps reduce setup time and processing errors, supporting improvements in productivity and quality.
Detailed information
-
Inspection of Molded Parts By precise contour projection, bent parts are inspected quickly and accurately. Distortions are visualized instantly, reducing waste in metal processing and improving process reliability.
-
Classification of nests and parts Sorting of cut metal parts is easy. You can remove the highlighted parts in the specified order and continue processing.
-
[Display of Measurement Points and Parts] Highlight the relevant tool with arrows or borders in the tool magazine. Select the appropriate measuring tool to ensure high-quality inspection results.
-
Setup of tools, systems, and machines. Guide the setup procedures with easy-to-understand projection diagrams to support the operators. Clearly and in detail display the positions of support members, clamping devices, and parts.
-
In "free bending" processing without using a back gauge, accurate results can be obtained.
Related Videos
Line up（3）
| Model number | overview |
|---|---|
| ZLP1 | Compact, easy to operate, high cost performance. |
| ZLP2 | High-performance fiber-coupled laser light source |

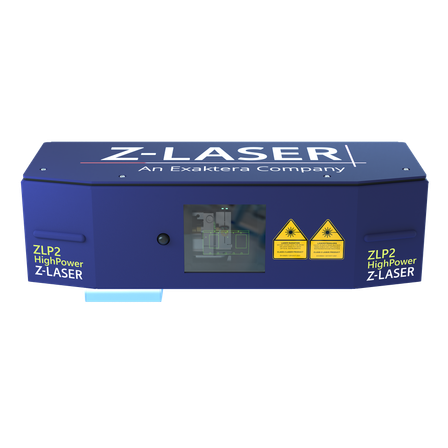

| ZLP2-HighPower | High-output laser projector that demonstrates the highest level of visibility. |
