2D/3D Laser Projector for Stone, Glass, and Ceramics
Actual projection of the workpiece, suction cup position, and machining contour in CNC processing. Streamlining setup and alignment. Demonstrations are also possible!
**What is the ZLP Series?** The ZLP series is a laser projector that directly projects contour lines and positional information based on 2D and 3D CAD drawings onto stone, glass, and ceramic workpieces or work surfaces at actual size. It displays the positions of workpieces and suction cups, as well as complex machining contours, to assist with setup and alignment without contact. **Main Applications** ● CNC machining of sinks, kitchen countertops, stairs, etc. ● Positioning of workpieces and suction cups ● Projection of complex cutting contours **Benefits of Implementation** ● Streamlining setup and alignment ● Accurate display of complex machining contours ● Supporting improvements in machining precision and finish quality **Model Selection and Demonstration** We will propose the most suitable model from ZLP1, ZLP2, and ZLP2-HighPower based on your application and installation conditions. Demonstrations are also available, so please feel free to consult with us.
basic information
● 2D and 3D drawings projected in actual size using laser ● Accuracy ±0.1mm/m (±0.1mm accuracy per 1m projection distance) ● Projection range up to 10m x 10m, maximum projection distance of 20m, capable of supporting large workpieces by linking multiple units ● High-output/high-brightness green laser with excellent visibility ● Compatible with foot switches, remote controls, barcode readers, etc. *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Model number/Brand name
ZLP Series (ZLP1/ZLP2/ZLP2-HighPower) | Z-LASER
Applications/Examples of results
【Examples of Applications in Stone, Glass, and Ceramics】 ●CNC Machining: Projecting machining contours to actual size from complex design data ●Work Positioning: Assisting in the alignment of stone, glass, and ceramics ●Suction Cup Placement: Displaying positions tailored to the workpiece shape ●Vanities, Kitchen Countertops, Stairs: Projecting cutting positions and contours to guide machining This streamlines setup and alignment, supporting improvements in machining accuracy and finish quality.
Detailed information
Line up（3）
| Model number | overview |
|---|---|
| ZLP1 | Compact, easy to operate, high cost performance. |

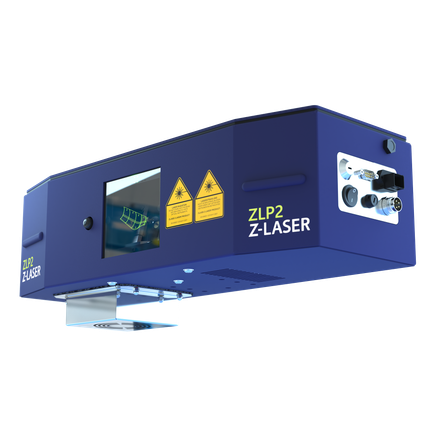

| ZLP2 | High-performance fiber couple laser light source |
| ZLP2-HighPower | High-output laser projector that demonstrates the highest level of visibility. |
catalog（3）
Download All Catalogs
