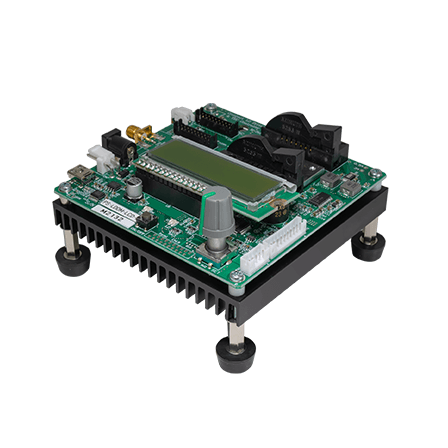

14-pin butterfly type LD power supply kit for high current with LCD display
![[Product] Frequency Ultra-High Stabilization HeNe Laser](https://image.mono.ipros.com/public/premium/image_category/570/1449215/IPROS13696889168829798377.png?w=140&h=140){kind=small}
All-in-one type, compatible with LD current 2A and TEC current 3A, supports butterfly-type LD.
An all-in-one type LD power kit that combines a current controller, temperature controller, and LD laser holder, supporting LD current of 2A and TEC current of 3A. With the selection of Type 1, 2, or 3 sub-boards, it can be used with most 14-pin butterfly package fiber-coupled LDs. It comes with an AC adapter, so a DC power supply is not required. Current values and temperatures can be checked on the LCD on the board. Control from an external PC is also possible. It is equipped with current limit settings for LD and TEC, PID gain, integral coefficient settings, and alarm functions. It can be used as an LD power supply for fiber laser excitation and as an LD power supply for fiber amplifier excitation.
basic information
Composition - LD power supply kit main unit - Sub-boards Type 1, 2, 3 - AC adapter - Insulation sheet - Instruction manual Supply voltage: 100 to 240 VAC Operating temperature range: 15 to 40 °C LD control current range: 2.0 A max PD current monitor: 5 mA TEC current range: 3.0 A max Dimensions: 100 (W) x 100 (D) x 78 (H) mm
Price information
Please contact us.
Price range
P3
Delivery Time
OTHER
1 week - 1 month
Model number/Brand name
PS-LDD-LCD-K
Applications/Examples of results
- Light source development - Laser microscope - OCT (Optical Coherence Tomography) - Laser processing - Nonlinear spectroscopy - THz wave generation - Material property evaluation - Theoretical education and training of lasers
