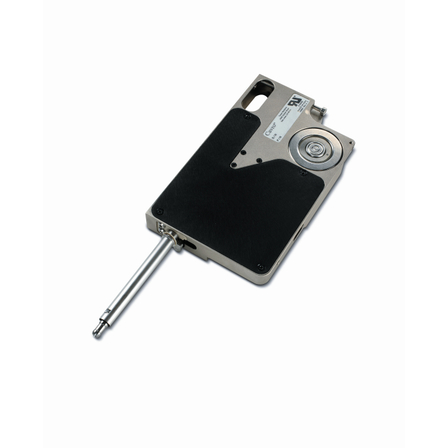

Precision dispenser ADP using pipette tips - also detects liquid levels!
No need for liquid path design or motor adjustment. With proven accuracy, liquid level detection, and chip eject functions, a high-throughput infectious disease analysis device has been completed in a short time.
Achievements in the introduction of PCR devices for the detection of the novel coronavirus by manufacturers worldwide. Numerous implementations in high-sensitivity immunoassay devices. Short-term development of devices that reliably detect infectious diseases. - Wearable disposable chips: A single type of unit can accommodate chips ranging from 10μl to 1ml (liquid volume range: less than 1μl to 1000μl). Grades for genetic samples for PCR testing are also provided. Filters to prevent false positives in genetic testing are available. - Easy device integration and liquid control: Communication and power supply are managed solely through the DA15 adapter. Liquid suction, discharge, and speed control can be easily managed via commands without directly controlling the stepper motor. No need for liquid path design, making adjustments simple. - Simple dispensing sequence design and operation assurance: Liquid level detection (to prevent cross-contamination and accuracy fluctuations) and automatic chip ejection can be executed with a single command. Liquid delivery operation confirmation via encoder. Recognition of chip installation and pressure monitoring during liquid suction (detecting air suction, clogging from floating particles, bubble suction, etc.) ensure reliable dispensing operations. *For more details, please click the "Download Catalog" button below.↓
basic information
- ISO13485 compliant manufacturing and thorough inspection according to US FDA standards. - Proven track record with gene analysis devices, sample pre-treatment, and high-sensitivity immunoassay devices. - Also provides racks for disposable tips and blood collection tubes. - There is no need to mount long liquid paths (tubes) on the device, making it less susceptible to variations in liquid dispensing accuracy caused by compression of system liquids or air in the tubes, as well as changes in external temperatures. - Maintenance-free design, high cost efficiency, and easy system integration. - Multiple units can be mounted on the robot's Z-arm. - Options for disposable tips: 10–1000μL (with/without filter, Pyrogen-free, DNA/RNA-free, etc.). - Equipped with self-diagnostic functions. - XYZ robotic arms that can be integrated are also available, allowing the entire system to be completed in a shorter time. - For CAD data (by size of mounted disposable tips), please contact us. * For detailed specifications, please click "Download Catalog" below. Additionally, materials on optimal dispensing conditions are also available. New version ADP is now on sale (published on a separate site).
Price information
The price varies depending on the quantity.
Delivery Time
Model number/Brand name
Pipette module for device integration ADP
Applications/Examples of results
Infectious disease testing, high-sensitivity immunoassays, sample pretreatment devices, specimen dispensing and collection devices, in vitro diagnostic reagent manufacturing, chemiluminescence analysis devices, nucleic acid purification devices, surface detection and dispensing of non-conductive liquids, water quality testing, petroleum refining, food testing, semiconductor cleaning, and other manufacturing.
Line up（2）
| Model number | overview |
|---|---|
| 30041734 | Liquid level detection, pressure monitoring sensor, with disposable chip automatic eject function. |
| 30055878 | No features mentioned above. |
