The non-denaturing analysis of antibody-drug conjugates (ADCs) is settled with this!
<Column demonstration in progress> Analyzing aggregate and drug-antibody ratio (DAR) using SEC column and HIC column.
As analytical methods for antibody-drug conjugates (ADCs), size exclusion chromatography (SEC) and hydrophobic interaction chromatography (HIC), which can be analyzed in a non-denaturing state, are important. Therefore, the analysis of aggregates by SEC and the analysis of drug-antibody ratio (DAR) by HIC are conducted as a set of evaluation methods. ■ SEC Analysis Column: [TSKgel UP-SW3000-LS] TSKgel UP-SW3000-LS is a column with low protein adsorption. It is suitable for the separation of antibody (IgG) aggregates, dimers, monomers, and fragments. ■ HIC Analysis Columns: [TSKgel HIC-ADC Butyl / TSKgel HIC-ADC Phenyl] The TSKgel HIC-ADC series has a higher separation capability for ADCs compared to the existing TSKgel Butyl-NPR and is an effective column for DAR analysis. We offer two types of functional groups with different separation selectivity for samples: butyl and phenyl groups. There are 10 cm columns for high-resolution analysis and 3.5 cm columns for fast analysis. To consider the durability of the columns, guard columns are also available.
basic information

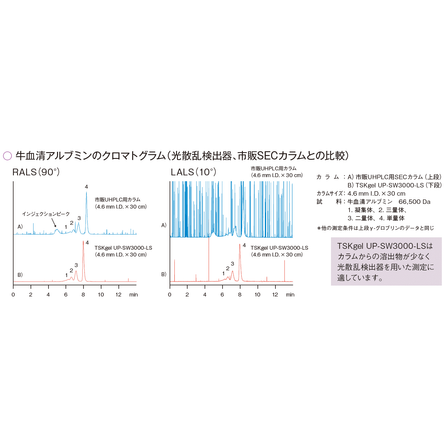

■SEC Analysis Column 【TSKgel UP-SW3000-LS】 Particle Size: 2 µm Pore Size: 25 nm Column Size: 4.6 mm I.D. × 15 cm or 4.6 mm I.D. × 30 cm Molecular Weight Fractionation Range: 10 to 500 kDa ■HIC Analysis Column 【TSKgel HIC-ADC Butyl / TSKgel HIC-ADC Phenyl】 Ligand: Butyl Group, Phenyl Group Particle Size: 5 µm Pore Size: Non-porous Column Size: 4.6 mm I.D. × 3.5 cm or 4.6 mm I.D. × 10 cm
Price information
■SEC Analysis Column 【TSKgel UP-SW3000-LS】 4.6 mm I.D. × 15 cm: 230,000 yen 4.6 mm I.D. × 30 cm: 320,000 yen ■HIC Analysis Column 【TSKgel HIC-ADC Butyl / TSKgel HIC-ADC Phenyl】 4.6 mm I.D. × 3.5 cm: 110,000 yen 4.6 mm I.D. × 10 cm: 220,000 yen *For details, please contact your distributor.*
Delivery Time
Model number/Brand name
TSKgel UP-SW3000-LS / TSKgel HIC-ADC Series
Applications/Examples of results
■ SEC Analysis Column 【TSKgel UP-SW3000-LS】 - Proteins (antibodies, enzymes) - Protein aggregates, fragments - Purity verification, rapid analysis, quality control ■ HIC Analysis Column 【TSKgel HIC-ADC Butyl / TSKgel HIC-ADC Phenyl】 - DAR analysis of ADCs, purity analysis - Analysis of antibody drugs, biopharmaceuticals, protein aggregates, fragments, isomer separation and analysis - Stereoisomer separation and analysis of plasmid DNA We also offer demo services for the columns. Please feel free to contact us.
