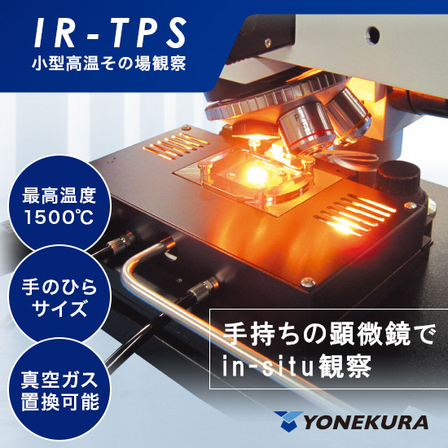

On-site observation of high temperatures up to 1500°C with your microscope [IR-TPS].
It is a compactly designed high-temperature heating observation device. It can be used on your microscope or micro-scope.
The IR-TPS is a high-temperature stage for microscopes that has been developed to achieve the contradictory goals of "high functionality and low cost." In addition to the standard configuration, advanced system equipment can be built with high-quality options. It can be used for research such as material analysis and quality control under precise temperature control in air, inert gas, or vacuum environments. 【Features】 ○ Uniform high-temperature heating of the sample at a speed of up to 1500°C within 60 seconds using infrared concentration ○ Energy-saving clean heating ○ Easy maintenance For more details, please contact us or refer to the catalog.
basic information
【Specifications】 ○ Temperature range: +50 to 1500℃ ○ Heating characteristics: 60 seconds from room temperature to 1500℃ ○ Heating method: Infrared emission and reflection concentration heating ○ Cooling method: Natural air cooling ○ Atmosphere: In air, gas flow, or vacuum ○ Achievable vacuum level: Approximately 5Pa ○ Sample container: Outer diameter φ5×4mm, φ6.5×4mm ○ Safety measures: Furnace body temperature sensor ○ Temperature control: Digital program PID-SCR control ○ Temperature program: 16 segments, 16 patterns ○ Temperature sensor: JIS R type thermocouple ○ Power consumption: 500W/100V ● For more details, please contact us or refer to the catalog.
Price information
Please contact us.
Delivery Time
Model number/Brand name
IR-TPS
Applications/Examples of results
【Applications】 For precise temperature control in atmospheres of air, inert gas, or vacuum. ○ Observation of melting and solidification of metals such as solder, aluminum alloys, and steel. ○ Observation of surface changes in metals due to phase transformation. ○ Observation of softening and hardening of amorphous materials such as glass. ○ Observation of heat resistance and modification of resins such as epoxy. ○ Observation of heat resistance, modification, and crack propagation in composite materials. These can be utilized for research and quality control, among other purposes. ● For more details, please contact us or refer to the catalog.
