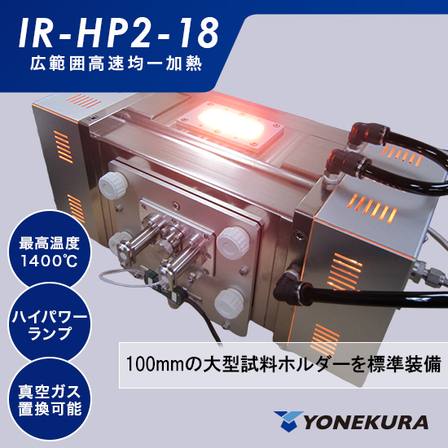

High-speed high-temperature heating device 'IR-HP2-18'
Maximum heating temperature 1400℃! For rapid heating of metals and ceramics, heating and cooling cycle testing.
The "IR-HP2-18" is a high-speed high-temperature heating device that supports non-contact heating up to 1400°C through the concentration and reflection of halogen lamp light. Using a high-power lamp while maintaining the standard IR-HP series furnace body, it significantly improves heating performance and maximum temperature. It comes standard with a large 100mm sample holder, accommodating sample sizes of Φ70mm. Due to its internally sealed structure, it can also handle heating in a vacuum or gas flow, making it suitable for rapid heating of ceramics and metals, as well as high-speed heating and cooling cycle tests. 【Features】 ■ Standard equipped with a large 100mm sample holder ■ Clean heating environment due to lamp heating method ■ Installation of observation window and video recording of heating state is possible ■ Automatic operation from vacuum to gas replacement and heating (optional) *You can view the product documentation for the series in PDF format.
basic information
【Specifications】*Excerpt ■ Heating Zone: 70×70×2 mm ■ Maximum Temperature: 1400℃ (maintainable) ■ Heating Rate: 50/sec (varies depending on the thermal capacity of the sample) ■ Furnace Atmosphere: In air, in vacuum, in gas, in bubbling ■ Available Options: Uniform heating susceptor, rapid cooling nozzle, automatic operation *Please feel free to contact us for inquiries.
Price information
-
Delivery Time
Applications/Examples of results
【Applications】 ■ Research and Development ■ Simulation of Heating Processes ■ Setting Conditions for Heating Processes ■ Confirmation of Changes During Heating etc. *For more details, please contact us or download the PDF materials.
Related Videos
catalog（1）
Download All Catalogs
News about this product（2）
-
"Heating furnace" up to 1800℃ / high-speed temperature rise and fall / temperature control performance [with observation video] not only for observation during heating but also as a heating furnace.
The concentrated heating furnace "IR Series" is used in various research facilities around the world and is flexible in accommodating customizations. ▼ Features of the IR Series ▼ The rapid heating performance and superior temperature control, along with information from the observation port, significantly shorten heating experiment times and facilitate the screening of optimal heating conditions, contributing to improved efficiency in material development tasks. ▮ Rapid Heating and Cooling & Temperature Control Performance With a heating rate of approximately 50°C/sec using concentrated heating, rapid cooling is possible with the heating lamp turned off. The temperature control performance achieves a temperature control accuracy of ±1°C through high-speed PID control of the heating lamp volume in relation to the temperature program. ▮ Compatibility with Various Atmospheres All furnaces adopt a vacuum chamber structure, allowing for gas replacement. They can accommodate heating under high vacuum, inert gas, reducing atmospheres, and humidity control atmospheres through bubbling. ▮ Easy Experimentation and Observation Compact and energy-efficient, they do not require a specific installation location. Due to the fast heating rate, there is no need to preheat the furnace, allowing experiments to be conducted whenever desired. ▼ Other Detailed Features ▼ - Real-time observation during heating - Clean Please check the related links for observation videos and examples of observation screen transitions!
-
