In-situ observation of high-temperature stress at 1400℃ / CATY-T3H
Opening up the material behavior under high-temperature stress of MAX1400℃ through in-situ micro-observation [CATY-T3H]
Real-time visualization of tensile and compressive behavior at ultra-high temperatures. In-situ observation enhances the accuracy and speed of high-temperature material development. Using an IR imaging furnace, it is possible to apply tensile or compressive loads while microscopically observing the surface state of the sample at high temperatures. This unique device allows for real-time observation of material behavior under high temperatures and stress. It is compact in size and can be used in various installation locations. 【Features】 - Dual swing crosshead: The specimen can be adjusted to a visible position. - Capable of high-speed heating up to 1400°C (depending on the shape and thermal capacity of the sample). - Flexible atmosphere: Vacuum chamber structure allows for stress measurement, low-cycle fatigue testing, and creep testing in gas flow or vacuum. - Realization of combined testing for thermal fatigue under stress and in-situ observation. 【Strongly supporting research and development of heat-resistant materials】 Experimental examples: Melting and solidification of metals and glass / Microstructural changes in metals / Sintering of ceramics, etc. Target materials: Metals / Semiconductors / Ceramics / Glass / Inorganic materials / Carbon, etc. *For more details, please refer to the materials. Feel free to contact us with any inquiries.
basic information
【Specifications】 《Tensile Module》 Load capacity: 2kN (200kgf) or 5kN (500kgf) Test speed: 0.001 to 10mm/min Effective length of specimen: up to 60mm 《Heating Furnace》 Heating method: Infrared two-elliptical cylinder concentrated heating method Temperature range: 60 to a maximum of 1500℃ Temperature control: Digital program PID-SCR control 《Observation》 Objective lens: Long working distance (×5, 10, 20, 50), low magnification zoom lens, variable magnification microscope Atmosphere: In air, in gas flow, in vacuum XY stage: X-axis ±50mm / Y-axis ±10mm *For more details, please refer to the materials. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
Detailed information
Related Videos
catalog（8）
Download All Catalogs
News about this product（12）
-
Catalog for Budget Application for High-Temperature Heating Furnaces / For budget applications such as development and research expenses
We have lined up the heating observation devices and IR image furnaces from Yokokura Manufacturing, used by various research institutions around the world. ▼ Product Lineup ▼ High-Temperature Furnaces 1. Heating Observation Type "MHO-300-2" - Observe with your microscope! Optional cooling down to -100°C. 2. Compact "IR-TPS" - On-site observation at high temperatures (1500°C) with your microscope. 3. Ultra-High Temperature Heating Type "IR-18SP" - Heats up to high temperatures (1800°C). 4. Compact "IR-TP" - Designed to enable various analyses. 5. Wide-Range High-Temperature Type "IR-QP" - Offers a wide heating range in the IR series, heating up to high temperatures (1700°C). 6. Wide-Range Type "IR-HP" - Offers a wide heating range in the IR series, suitable for heating plates, wafers, substrates, etc. 7. Wide-Range High-Temperature Type "IR-HQ" - A higher model than IR-QP, heats up to high temperatures (1800°C). 8. Large Area "IR-OP" - For simulating various heating conditions. 9. Long-Length Large Area "IR-HP5" - Utilizes specially designed long-length heating lamps. Please check the individual product pages for more details. We also welcome inquiries for customizations tailored to your testing needs, so feel free to contact us.
-
"High-Temperature Heating, Tensile Compression, In-Situ Observation" Atmosphere control also / High-Temperature Tensile Compression Observation Device "CATY-T3H" Achieves space-saving with a compact tabletop design.

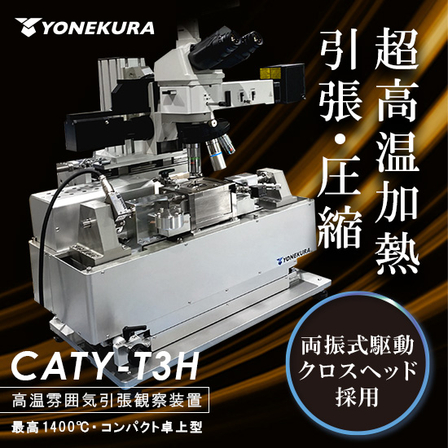

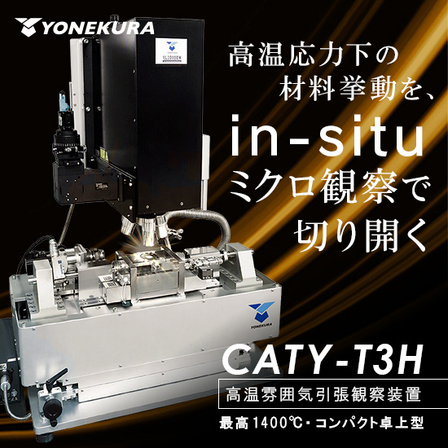

The "CATY-T3H SYSTEM" is a tabletop high-temperature tensile observation device that allows for thermal fatigue testing while observing the condition of the sample surface in real-time. It employs a dual-swing crosshead design to keep the sample position centered and ensure no changes are missed!
-
"Tabletop-sized high-temperature tensile observation device" High-temperature tensile compression observation device "CATY-T3H" with high-temperature heating, tensile compression, in-situ observation, and atmosphere control also available.
The "CATY-T3H SYSTEM" is a tabletop-sized high-temperature tensile observation device that allows for thermal fatigue testing while observing the condition of the sample surface "on-site," keeping the sample position centered to capture any changes!
-
≪IR Series High-Temperature Furnace Brochure Now Available≫ Maximum 1800℃ / High-Speed Temperature Rise / Temperature Control Performance [With Observation Video] Suitable not only for observation during heating but also as a heating furnace.
The concentrated heating furnace "IR Series" is used in various research facilities around the world and is flexible in customization. ▼ Features of the IR Series ▼ The rapid heating performance and temperature control superiority, along with information from the observation port, significantly shorten heating experiment times and facilitate the screening of optimal heating conditions, contributing to improved efficiency in material development tasks. ▮ Rapid Heating and Cooling & Temperature Control Performance With a heating rate of approximately 50°C/sec using concentrated heating, rapid cooling is possible with the heating lamp turned off. The temperature control performance achieves a temperature control accuracy of ±1°C through high-speed PID control of the heating lamp volume in response to temperature programs. ▮ Compatibility with Various Atmospheres All furnaces adopt a vacuum chamber structure and allow for gas replacement. They can accommodate heating under high vacuum, inert gas, reducing atmospheres, and humidity control atmospheres through bubbling. ▮ Easy Experimentation and Observation Compact and energy-efficient, it does not require a specific installation location. Due to the fast heating rate, there is no need to preheat the furnace, allowing experiments to be conducted whenever desired. ▼ Other Detailed Features ▼ - Real-time observation during heating - Clean Please check the related links for observation videos and examples of observation screen transitions!
-
"IR Series High-Temperature Furnace Brochure Now Available" Maximum 1800℃ / High-speed Heating and Cooling / Temperature Control Performance [with Observation Video] Suitable not only for observation during heating but also as a heating furnace.
The concentrated heating furnace "IR Series" is used in various research facilities around the world and is flexible in accommodating customizations. ▼ Features of the IR Series ▼ The rapid heating performance and superior temperature control, along with information from the observation port, significantly shorten heating experiment times and facilitate the screening of optimal heating conditions, contributing to improved efficiency in material development tasks. ▮ Rapid Heating and Cooling & Temperature Control Performance With a heating rate of approximately 50°C/sec using concentrated heating, rapid cooling is possible with the heating lamp turned off. The temperature control performance achieves a temperature control accuracy of ±1°C through high-speed PID control of the heating lamp volume in relation to the temperature program. ▮ Compatibility with Various Atmospheres All furnaces adopt a vacuum chamber structure and allow for gas replacement. They are compatible with heating under high vacuum, inert gas, reducing atmospheres, and humidified dew point control atmospheres via bubbling. ▮ Easy Experimentation and Observation The compact and energy-efficient design does not require a specific installation location. Due to the fast heating rate, there is no need to preheat the furnace, allowing experiments to be conducted whenever desired. ▼ Other Detailed Features ▼ - Real-time observation during heating - Clean Please check the related links for observation videos and examples of observation screen transitions!
