Observe the scene from multiple angles! 【Reflow Soldering Simulator】
【Compact tabletop model】Allows for multi-angle observation and filming of the behavior of molten solder during heating!

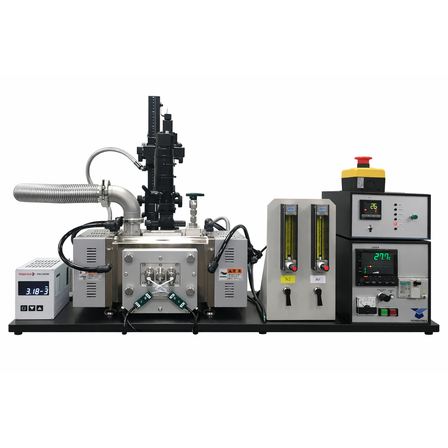

The "IR-HP-SP2" is a large heating observation device that allows for the observation and recording of the behavior of the solder material during heating. When equipped with a multi-camera system, it enables simultaneous observation from multiple directions and analysis of the behavior of the solder and flux linked to temperature. The furnace body is a tabletop model that can be installed on an experimental table. Additionally, it features a vacuum chamber structure, allowing for various vacuum gas replacements and experiments with gas flow, ensuring that flux gas does not leak externally, making it safe to use anywhere. 【Features】 ■ Airtight structure allows for flexible atmosphere control ■ Compact tabletop design enables clean heating and is suitable for any installation environment ■ On-site observation during heating at free angles ■ Flexible temperature control performance *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Other Features】 - Simultaneous observation from different angles is possible with two cameras. - The sample holder is 100×100mm, allowing for direct heating of large samples. - Gas replacement is possible, enabling heating in various atmospheres such as vacuum, Ar, and N2. - Dew point temperature control and oxygen concentration control are also available upon request. - Temperature control can be programmed using a programmable temperature controller or the dedicated software HiTOS. - Rapid heating and cooling are possible, making it easy to conduct experiments with temperature protocols that are difficult to reproduce conventionally. - Video recording synchronized with actual temperature records is also possible. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Related Videos
catalog（3）
Download All Catalogs
News about this product（2）
-
"Heating furnace" up to 1800℃ / high-speed temperature rise and fall / temperature control performance [with observation video] not only for observation during heating but also as a heating furnace.
The concentrated heating furnace "IR Series" is used in various research facilities around the world and is flexible in accommodating customizations. ▼ Features of the IR Series ▼ The rapid heating performance and superior temperature control, along with information from the observation port, significantly shorten heating experiment times and facilitate the screening of optimal heating conditions, contributing to improved efficiency in material development tasks. ▮ Rapid Heating and Cooling & Temperature Control Performance With a heating rate of approximately 50°C/sec using concentrated heating, rapid cooling is possible with the heating lamp turned off. The temperature control performance achieves a temperature control accuracy of ±1°C through high-speed PID control of the heating lamp volume in relation to the temperature program. ▮ Compatibility with Various Atmospheres All furnaces adopt a vacuum chamber structure, allowing for gas replacement. They can accommodate heating under high vacuum, inert gas, reducing atmospheres, and humidity control atmospheres through bubbling. ▮ Easy Experimentation and Observation Compact and energy-efficient, they do not require a specific installation location. Due to the fast heating rate, there is no need to preheat the furnace, allowing experiments to be conducted whenever desired. ▼ Other Detailed Features ▼ - Real-time observation during heating - Clean Please check the related links for observation videos and examples of observation screen transitions!
-
