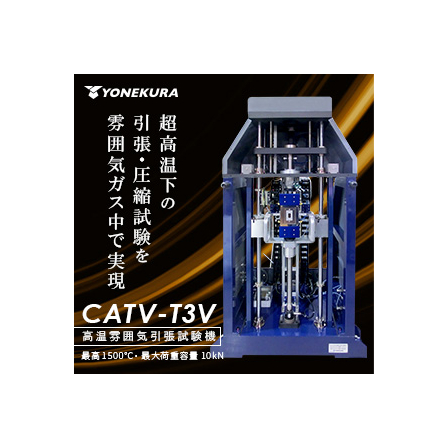

High-Temperature Atmosphere Tensile Testing Machine CATY-T3V ≪ Compatible with Various Atmosphere Gases≫
- For the measurement and evaluation of metallic materials - High-temperature atmosphere tensile testing machine CATY-T3V
The "High-Temperature Atmosphere Tensile Testing Machine CATY-T3V" is a hybrid testing machine that can perform tensile tests in a vacuum and inert gas atmosphere, featuring a representative high-temperature heating furnace (IR image furnace) from Yokokura Seisakusho. ◆ Key Points ◆ - Maximum temperature of 1500℃ and maximum load of 10kN Tensile observation under ultra-high temperatures - Vacuum chamber structure Compatible with various atmosphere gases - Easy operation and installation Time-saving experiments Please contact us for more details.
basic information
■ Heating Furnace Temperature Range: 100–1500℃ Heating Rate: 1℃/min–15℃/sec Heating Method: Infrared four-ellipse concentrated heating Atmosphere: Atmospheric, Inert, Reducing, Vacuum Furnace Cooling: Water cooling (tap water or chiller) Power Supply Capacity: Single-phase 200V 40A Furnace Body Lifting Function: Manual up-and-down sliding (for sample exchange) ■ Testing Machine Body Capacity: MAX 10 kN Speed: 0.01–200 mm/min Crosshead Stroke: 200 mm Control Method: CPU-controlled servo motor Load Cell: Replaceable Load Cell Amplifier: 4-range switching Calibration and Auto-balance Function ■ Test Jig ■ Controller and Dedicated Software Temperature, load, displacement program control, time vs. temperature, load, displacement plot display, data storage, report function ■ External Dimensions Main Body: W960×D600×H1730 mm Control Rack: W600×D600×H1880 mm *Specifications may change depending on the testing content.
Price information
Please contact us.
Delivery Time
Model number/Brand name
High-Temperature Atmosphere Tensile Testing Machine CATY-T3V
Applications/Examples of results
Mainly, research, testing, and quality assurance departments.
