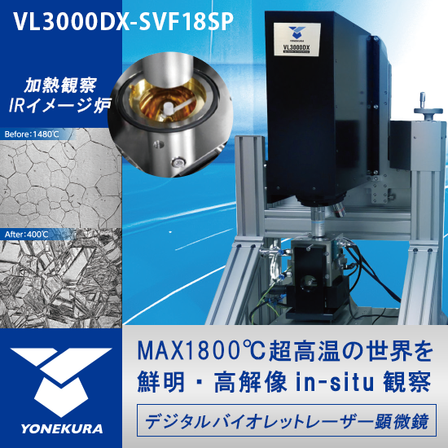

Ultra-High Temperature Observation Laser Microscope System VL3000DX-SVF18SP
High-resolution in-situ observation under environments up to 1800℃. For research and material development of ceramics, secondary batteries, etc.!
The representative heating observation IR imaging furnace from Mikyo Manufacturing has been equipped with a digital violet laser microscope. It enables clear microscopic observation in ultra-high temperature environments of up to 1800°C. Compared to conventional models, the resolution and brightness have improved by about two times*, allowing for observations with high magnification and high contrast. Please utilize it for research on the behavior of fine structures and material development under high temperatures in steel, non-ferrous metals, ceramics, secondary batteries, and more. *Compared to our conventional model "VL2000DX-SVF17SP" ◆ Key Points ◆ - High-resolution in-situ observation Obtaining high-resolution images under ultra-high temperatures - Realization of diverse observation conditions Rapid heating and rapid cooling up to 1800°C - Excellent operability and controllability High-speed image acquisition accurately linked to temperature By using the optional load mechanism module "SVF12FTC," observations can be conducted under stress loading (up to 5kN) at high temperatures. For more details, please contact us.
basic information
【Specifications】 ■ System Name VL3000DX-SVF18SP ■ Configuration [ Leather Head VL3000DX ] [ Heating Device SVF18SP ] ■ Options [ Heating Load Device SVF12FYC ] * Specifications are subject to change without notice.
Price information
Please contact us.
Delivery Time
Model number/Brand name
Ultra-High Temperature Observation Laser Microscope System VL3000DX-SVF18SP
Applications/Examples of results
Research on the microstructural behavior of steel, non-ferrous metals, ceramics, and secondary batteries at high temperatures, material development.
