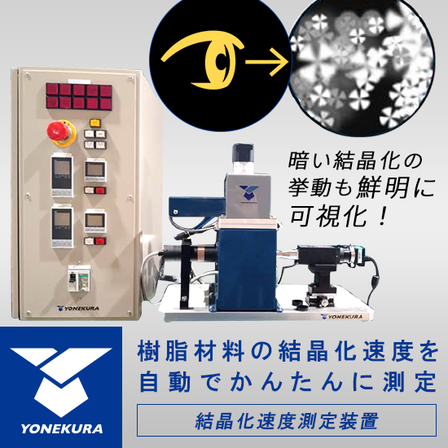

"Crystallization Rate Measurement Device" Clearly captures the crystallization process of resin materials.
Automatic and easy measurement of crystallization rate of resin materials / Polymer crystallization by temperature jump / Visualization with images and graphs / Compact design
The crystallization rate measurement device from Mikyo Manufacturing Co., Ltd. is designed to melt film-like resin materials and measure the rate at which they crystallize. By continuously quantifying the crystallization process through image processing, it automatically and accurately measures the crystallization rate of polymers. ◆ Polymer Crystallization via Temperature Jump ◆ A film-like sample is sandwiched between glass covers and set in a sample holder. Once the heating furnace reaches the melting temperature, the sample holder is inserted. The fully melted film automatically drops into an oil bath, achieving a temperature jump through quenching. This device realizes a temperature jump during quenching in an oil bath for the melted film under conditions that cannot be replicated by conventional thermal analysis equipment. Polarizing microscopes for measurement and reference capture the crystallization process. The screen can display a scale bar, allowing for real-time measurement of spherulite size. ◆ Key Points ◆ - Automatic measurement with just temperature and time settings - Clear visualization of dark crystallization behavior - User-friendly and compact design For more details, please refer to the catalog or contact us.
basic information
【Specifications】 ■ Product Name Crystal Acceleration Measurement Device ■ Air Bath Heating Temperature: Maximum 400℃ Heating Method: Heater Type Sample Holder: Spring-type, Microscope Cover Glass (18mm×18mm) Holder Fixing: Automatic Disconnection Type with Guide Rail Material Holder: 20×20mm Ceramic Plate ■ Oil Bath Specifications: SUS-made with φ30mm Detection Window, Motor Stirrer Included Heating Temperature: Maximum 200℃ ■ Polarizing Microscope One for Measurement, One for Reference Transmitted Illumination: White LED Fiber Type Objective Lens: f=160mm 4X WD=18mm Polarizer: Analyzer/Rotating Polarizer with Extinction Ratio 1:10000 Light Receiving Element: Monochrome Area Sensor Resolution: 744×480 pixels Brightness Resolution: 1024 * Specifications are subject to change without notice.
Price information
Please contact us.
Delivery Time
Model number/Brand name
Crystallization rate measurement device
Applications/Examples of results
Please contact us.
