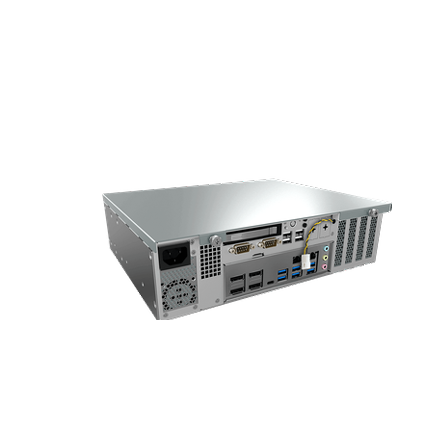

2U Industrial Rack Mount PC C&T KCO-2000-RPL

C&T, 14th/13th/12th generation Raptor Lake-S CPU, fanless, 2U rack mount compatible, equipped with a Flex power supply unit.

【C&T KCO-2000-RPL Features】 ■ Width 324 x Height 89 x Depth 276mm, approximately 7.97 liters ■ 19-inch 2U rack mount specification (short depth compatible, slide rail mount included) ■ Supports 14th/13th/12th generation Raptor Lake-S CPUs (LGA1700, maximum 65W TDP) ■ Supports fanless operation ■ Supports 4 display outputs (4x DP) ■ Expansion slots: ・1x M.2 E Key: 2230 (PCIe x1 Gen 3/USB 2.0) ・1x PCIe x16 Slot (Gen 5) ・1x PCIe x16 Slot (Gen 4, 4-Lane) ・1x PCIe x4 Slot (Gen 4, Open End) ・1x PCIe x4 Slot (Gen 3, Open End) ■ 6x USB 3.1 Gen 2, 1x USB 3.2 Gen 2x2, 6x RS-232 COM ■ Equipped with a built-in 250W Flex power supply unit (AC 100–240V, 50/60Hz compatible)

Santex Co., Ltd. C&T Company Product List

basic information

Specifications ■CPU: 14th/13th/12th Generation Raptor Lake-S CPU (LGA1700, up to 65W TDP) ■Chipset: Intel Q670E PCH ■Memory: 4x DDR4 DIMM (up to 128GB) ■Storage: ・2 x M.2 M Key slots (supports 2242/2260/2280 sizes, NVMe PCIe Gen4 x4, NVMe/SATA PCIe Gen4 x4) ・4 x SATA III ports (supports 6Gb/s) ・1 x 2.5-inch SATA drive bay (hot-swappable, supports 7mm height) ■I/O Connectors: 6x USB 3.1 Gen 2, 1x USB 3.2 Gen 2x2, 2x USB 3.0 Gen 1, 4x USB 2.0, 6x RS-232 COM, 4x DP, 2x RJ45 ■Power Supply: 100-240V AC @ 50/60Hz ■Operating Temperature: 0°C to 50°C ■Dimensions (mm)/Weight: 324(W) x 89(H) x 276(D) mm / 5kg ■Certification: Compliant with UL 62368 Ed. 3, FCC, CE certifications

Price information

Open price

Delivery Time

Please contact us for details

It may vary depending on the quantity and timing, so please feel free to contact us.

Model number/Brand name

C＆T KCO-2000-RPL

Applications/Examples of results

Factory and building automation / multimedia systems / digital signage / social infrastructure systems (monitoring and control of broadcasting, telecommunications, water supply and drainage, transportation, and power) etc.
