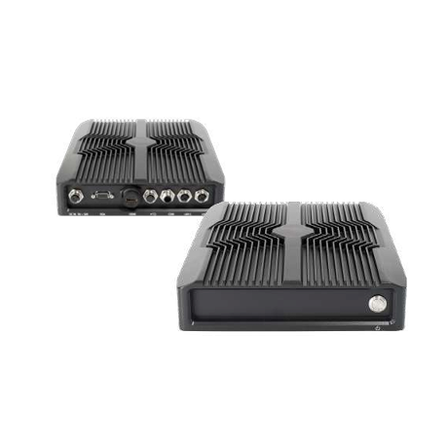

7th Generation CPU Fully Waterproof IP67 Industrial PC WCO-3400
C&T, 7th generation Kaby Lake-U CPU, extended temperature -40°C to 70°C, fully waterproof and dustproof IP67 compliant.
【WCO-3400-IP67 Features】 ■ Dimensions: 231mm (W) × 56.5mm (H) × 292mm (D), approximately 3.81 liters ■ Weight: 4.21kg ■ 7th Generation Core i5-7300U / i3-7100U CPU (Kaby Lake-U) ■ 1x 8GB DDR4 1866/2133MHz SODIMM ■ 1x 256GB 2.5” SATA SSD ■ 1x RS-232/422/485, 1x USB 3.0, 2x USB 2.0 ■ Operating temperature range: -40 to 70℃ ■ IP67 dustproof and waterproof rating ■ Wide DC input: 9 to 50V
basic information
Specifications ■CPU 7th Generation Core i5-7300U / i3-7100U CPU (Kaby Lake-U) ■Memory 1x 8GB DDR4 1866/2133MHz SODIMM ■Chipset SoC ■Storage 1x 256GB 2.5” SATA SSD ■I/O Connectors 1x RS-232/422/485, 1x USB 3.0, 2x USB 2.0, 1x VGA, 1x RS-232/422/485, 2x LAN (M12 X-Code 8-pin) ■Input Power DC 9–50V input (A-coded M12) ■Operating Temperature -40–70℃ ■Mounting Method Wall mount ■Waterproof Rating IP67 ■Certification CE, FCC Class A
Price information
Open price
Price range
P3
Delivery Time
P4
Model number/Brand name
C＆T WCO-3400-IP67
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（2）
| Model number | overview |
|---|---|
| WCO-3400-IP67-7300U | IP67 Waterproof System with Intel i5-7300U Processor, 8GB RAM, 256GB SSD |
| WCO-3400-IP67-7100U | IP67 Waterproof System with Intel i3-7100U Processor, 8GB RAM, 256GB SSD |
