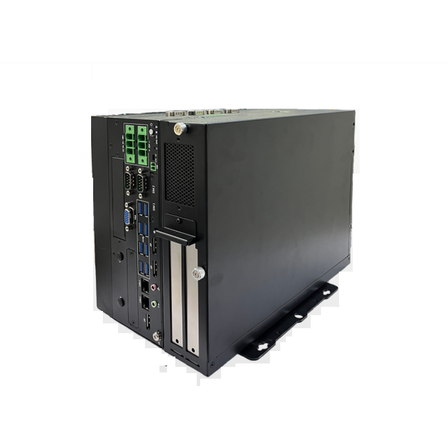

13th Generation CPU Equipped Edge AI Computer SE-5012E
Arestech, equipped with 13th/12th generation CPU, fanless, extended temperature, AI/machine vision compatible.
【Arestech SE-5012E Features】 ■ Dimensions: 177mm (W) x 228mm (H) x 325mm (D) ■ Weight: 8.8kg ■ Supports 13th/12th generation Intel Core i LGA1700 CPU (up to 35W) ■ Wide temperature range: -40 to 70°C ■ 2x DDR5 SO-DIMM (4800/5600MHz, up to 64GB) ■ 4 display outputs via 3x DisplayPort + 1x VGA (3x HDMI* optional) ■ 2x 2.5GbE LAN ■ 8x USB 3.2 Gen2, 6x RS-232/422/485 ■ Capable of supporting external GPU (such as NVIDIA RTX) ■ Wide power supply: 9-48V DC input ■ Vibration resistance: 3Grms, shock resistance: 30G ■ 1 x Full-Size Mini-PCIe (PCIe, USB 2.0 and SIM), 1 x M.2 B-Key 2242/3042/3052 (PCIe, USB 3.0 and SIM), 1 x M.2 E-Key 2230 (PCIe, CNVi), 1 x PCIe x16 Slot expansion slot support
basic information
Specifications ■CPU: 13th/12th Generation Intel Core/Pentium/Celeron (up to 35W) ■Chipset: Intel R680E ■Memory: 2x DDR5 SO-DIMM (up to 64GB) ■GPU ・Intel UHD Graphics (770/730/710) ・Up to 4 displays (3 x DP + 1 x VGA or 3 x HDMI *optional) ■LAN: 2x 2.5GbE RJ45 (Intel i226) ■I/O Interface: 8x USB 3.2 Gen2, 6x RS-232/422/485, 3x DP (4096x2160), 1x VGA (1920x1200) ■Storage: 2x 2.5" SATA, 2x M.2 (NVMe/SATA) ■Power Supply: 9-48V DC input ■Protection Features: OVP (52V), RVP (-48V), OCP (20A) ■Operating Temperature: -40 to 70°C ■Material: Aluminum & SECC ■Certification: CE, FCC Class A ■OS: Windows 10 IoT, Windows 11 (IoT/Professional), Linux
Price information
Open price
Delivery Time
Model number/Brand name
Arestech SE-5012E
Applications/Examples of results
Vehicle computing systems, onboard machines, factory, building automation, monitoring systems, Edge AI, machine vision, network communication.
Line up（3）
| Model number | overview |
|---|---|
| SE-5010 | Intel 13th/12th Core i LGA1700 CPU, R680E Fanless Box PC with 8 x USB3.2, 6 x RS232/422/485, 2 x 2.5GbE, 1 x VGA, 3 x DP, 3 x Flexible I/O Window Slot, 2 x Internal 2.5” SATA SSD, 2 x DC 9~48V |
| SE-5012E | Intel 13th/12th Core i LGA1700 CPU, R680E Fanless Box PC with 8 x USB3.2, 6 x RS232/422/485, 2 x 2.5GbE, 1 x VGA, 3 x DP, 3 x Flexible I/O Window Slot, 2 x Internal 2.5" SATA SSD, 2 x DC 9~48V |
| SE-5014E | Intel 13th/12th Core i LGA1700 CPU, R680E Fanless Box PC with 8 x USB3.2, 6 x RS232/422/485, 2 x 2.5GbE, 1 x VGA, 3 x DP, 3 x Flexible I/O Window Slot, 2 x Internal 2.5" SATA SSD, 2 x DC 9~48V |
