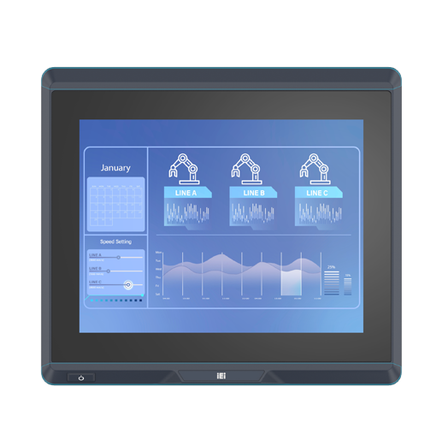

12.1-inch fully waterproof IP66 panel PC UPC-F12M1
13th generation Raptor Lake-P CPU, IP66 completely waterproof, fanless feature, anti-glare and UV-resistant PCAP touch included.
【IEI UPC-F12M1-RPLP Features】 ■ 12.1" TFT LCD ■ Fanless cooling system ■ Raptor Lake-P 13th generation CPU i3-1315URE SoC processor (15W) ■ Memory 8GB LPDDR4 ■ Expansion slots ・ 1 x M.2 B key 3042/3052/2280 (SATA & PCIe Gen3 x1 & USB 3.0) ・ 1 x M.2 M key 2280 (PCIe Gen3 x4) ・ 1 x M.2 2230 E key Slot (PCIe + USB signal) ■ Anti-UV, non-glare touch panel, operable with gloves and wet hands ■ IP66 fully waterproof/dustproof bezel ■ Wide DC input power 9 ~ 36V ■ Supports extended temperature -20°C ~ 60°C (with airflow) ■ Vibration/shock resistant compliant with MIL-STD-810H standards ■ Uses ultra-long-life LED backlight (MTBF: 50,000 hours)
basic information
Specifications ■ Display Size: 12.1” (4:3) ■ Display Resolution: 1024 x 768 ■ LCD Brightness: 600cd/m2 ■ Contrast: 1000:1 ■ Touch Panel: Capacitive Touch ■ CPU: i3-1315URE SoC Processor (15W) ■ Memory: 8GB LPDDR4 Onboard ■ Storage: 1 x M.2 M key 2280 (PCIe Gen3 x4) ■ I/O Connectors: 2× 2.5GbE LAN, 1 x HDMI, 2 x CAN Bus (RJ45), 1 x RS-232 (RJ45), 1 x RS-232/422/485 (RJ45), 2 x USB3.2 Gen2, 1 x USB3.0 ■ Input Power: 9 ~ 36V DC ■ Mounting: VESA 100mm x 100mm ■ Dimensions (W x L x D) / Weight: 316 x 279 x 76mm / 5Kg ■ Operating Temperature: -20°C ~ 60°C ■ Certifications: CE/FCC/UKCA, IEC60068-2-27, MIL-STD-810H 514.8C-1
Price information
Open price
Price range
P3
Delivery Time
P4
Model number/Brand name
IEI UPC-F12M1-RPLP
Applications/Examples of results
KIOSK terminals, machine control, factory automation systems, and vehicle-mounted applications such as forklifts.
Line up（1）
| Model number | overview |
|---|---|
| UPC-F12M1-RPLP-i3/PC/8G-R10 | 12.1-inch 600cd/m² XGA fanless panel PC with Intel Raptor Lake-P Core i3-1315 URE Processor, TDP 15W, 8GB LPDDR4x RAM, PCAP touch, M12 I/O, R10 |
