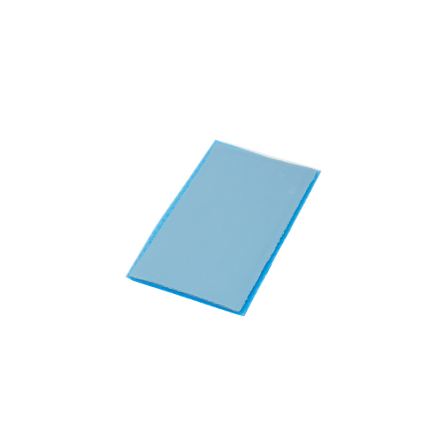

High-performance thermal conductive pad 'TGF-P1'
Cut the width in half to create pads for two M.2 SSDs!
"TGF-P1" is a high-performance thermal conductive pad with a thermal conductivity of 15.6W/m·K. By incorporating nanomaterials, it achieves a maximum thermal conductivity of 15.6W/m·K. It is easy to cut to any size, simple to handle, and can be used for M.2 SSDs, graphics cards, RAM, laptops, and more. It excels in flexibility, making it suitable for filling gaps between various components. It operates stably within a temperature range of -40°C to 200°C, accommodating a wide range of applications. It is insulating, non-conductive, environmentally friendly, and non-toxic. 【Specifications (partial)】 ■ Thermal conductivity: 15.6W/m·K ■ Specific gravity: 3.4g/cm3 ■ Hardness: 30–55Sc ■ Operating temperature: -40–200°C ■ Flame retardancy: UL94 V-0 *For more details, please refer to the related links or feel free to contact us.
basic information
【Other Specifications】 ■Insulation Breakdown Voltage: 6kV/mm ■Size: W50×D90×H1mm ■Color: Blue ■Quantity: 1 piece *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
