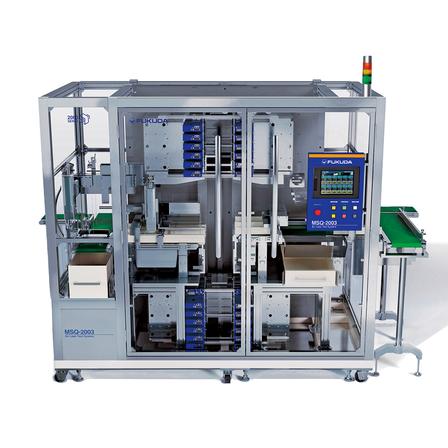

Packaging Container Air Leak Test (Pinhole Inspection) Device | MSQ-2003
This is a fully automated inspection device for pinholes in packaging engineering. It eliminates packaging defects based on certain quality standards. The targets include pillow packaging, pouches, etc.

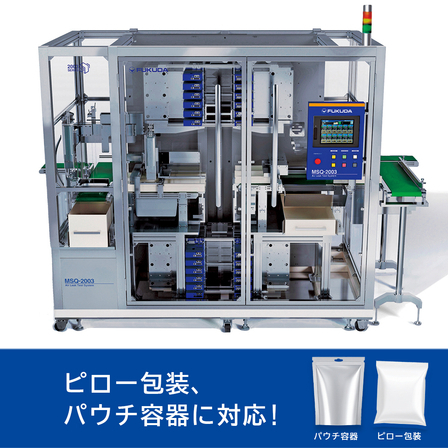

The pinhole inspection for packaging engineering is fully automated, eliminating packaging defects based on certain quality standards. The judgment results and operational status can be managed via a monitor screen. - Example of target work: pillow packaging, pouches, etc. - Quantitative management of quality standards for the pinhole inspection process - Ensuring the quality of the product's shelf life - Establishing evaluation criteria for the manufacturing process, achieving quantitative quality assurance - Slim and space-saving design allows connection to existing production lines - Quick changeover for product variety switching can be handled in a short time by replacing the chamber - Fully domestically produced, ensuring rapid response for maintenance and troubleshooting *Please consult us regarding the application of this product for pharmaceuticals.
basic information
- Measurement method: Sealed chamber method (Pressure change leakage test method 1) - Variety setting: 1 to 100 groups (100 types) - Power supply voltage and consumption: AC 200 V ±10% three-phase 50/60 Hz 4kVA - Processing capacity: 60 pieces/min – *Depends on the inspection target, test conditions, measurement time, and the processing capacity of the packaging machine. - Detection accuracy (reference value): Equivalent to Φ50 μm – *Depends on the inspection target, test conditions, and measurement conditions. - Target work size (mm): Depends on the type and shape of packaging and the number of items inspected. Please consult us first. - Dimensions (mm): W2200 × D1200 × H2000 *Excluding protrusions - Weight: Approximately 1,500 kg (Note) - Equipment specifications will be determined through discussions. - Due to the type and shape of packaging, the work loading section and core (chamber) will be designed each time, so it will be made to order. - Product specifications may change without notice.
Price range
Delivery Time
Applications/Examples of results
We are open to consultations for custom machines based on your requests for the packaging containers you wish to inspect. Please contact us for more details.
