Non-contact infrared radiation thermometer 'L-1000'
Equipped with a direct setting function that allows you to register the temperature of the moment you are observing! Measurement through glass is possible! A sensor head with a heat resistance temperature of 250°C is also available for selection!
The L-1000 is an infrared radiation thermometer equipped with an alarm function that attempts to capture the momentary temperature at the set value, all while being easy to operate. In addition to changes made through normal operation, you can directly register the set value (Alarm Hi:) using the D-SET key, freeing you from the hassle of making changes. The targeting beam uses a high-brightness LED, making it easy to focus. It is reassuringly made in Japan and comes with after-sales support. **Features:** - Capable of measuring temperature through glass - Can measure temperatures from 140 to 3000°C across the series - Equipped with a direct setting function to set display values directly to the set value - Can memorize 10 patterns for emissivity (emittance value) and Alarm Hi/Lo, and changes can be made by recalling patterns - Adopts auto-reset peak hold for easy temperature management on production lines - Resistant to high frequencies and noise due to fiber optic technology - Uses high-brightness LEDs for the target beam lamp - External output: Standard analog output (4-20mA, 0-10V) RS-232C and Bluetooth are optional - Measurement software is included as standard
basic information

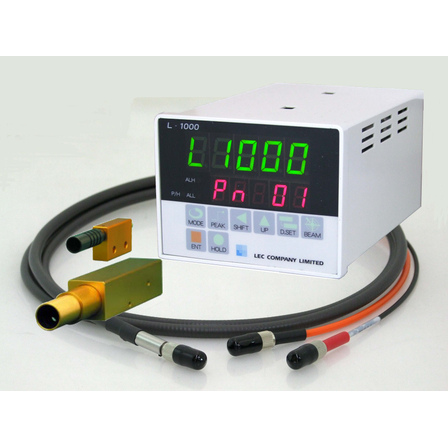

The L-1000 is a radiation thermometer that can be used with a converter, sensor head, and optical fiber. Please refer to the order details in the catalog when requesting a quote or placing an order. ■ Temperature data can be imported and various settings can be changed via RS-232C or Bluetooth (optional). * For more details, please refer to the catalog or feel free to contact us. * An English version of the catalog is available for download.
Price information
The price varies depending on the type of sensor head and optical fiber, so please contact us for inquiries.
Delivery Time
Applications/Examples of results
Applications: Casting temperature management, high-frequency heating temperature measurement, temperature measurement in vacuum furnaces, resistance heating temperature measurement, etc. There are many proven uses in experiments at other universities. * For more details, please refer to the catalog or feel free to contact us. * You can download the English version of the catalog.
Detailed information
-
It can be fixed to tripods and other equipment with a mounting bracket for 25 heads.
-
It comes with measurement software that can capture temperature data on a PC.
-
It is attached to the SH-7 sensor head to protect the lens. Cleaning the dirty filter is easy and can be done by simply pulling it out. *Air is required.
-
Attach it to the 25 head to protect the lens. *Air is required.
-
Fiber optic sensor head capable of withstanding radiation heat of 600°C at the front of the sensor unit. Can be attached to L-1000 for temperature measurement.
catalog（3）
Download All Catalogs
Recommended products
Distributors
The main product, the radiation thermometer, features a fast response time and can measure small surface areas, with the capability to measure through glass. It has a wide temperature range, suitable for various applications from low to high temperatures. It is particularly ideal for measuring workpieces inside vacuum chambers, high-frequency heating, and objects moving along production lines. The meter relay is analog and is offered at a low price with a short delivery time.
