High-precision compact magnetic switches and sensors for aerospace applications.
Repeatability accuracy ±0.05μm, ideal for component placement in aerospace applications.
In the aerospace industry, the precise placement of components is a crucial factor that affects the safety and performance of products. Particularly in environments with significant vibrations and temperature changes, high precision in positioning is required. Inaccurate placement can lead to product malfunctions and decreased safety. Our small magnetic switches and sensors provide stable performance even in harsh environments, with a repeatability of ±0.05μm and an IP67 protection structure, enhancing the reliability of component placement. 【Application Scenarios】 - Positioning of components in the manufacturing of aircraft and spacecraft - Assembly processes of precision instruments - Position detection of components in inspection equipment 【Benefits of Implementation】 - Improved product quality through high-precision positioning - Stable operation in harsh environments - Reduced risk of failure
basic information
【Features】 - The detection head is compact with a diameter of 3mm - Repeatability accuracy of ±0.05μm - Protection structure IP67 - Less susceptible to dirt and dust due to magnetic detection method - NPN/PNP transistor open collector output 【Our Strengths】 Utilizing our original technology of saturable coils, we provide a fundamentally simple magnetic detection element technology that maintains high precision and stability over long periods even under adverse conditions. All products are developed and manufactured 100% in Japan, and over 80% of our product lineup consists of custom-made items based on individual customer requests. If you have any issues related to sensing or measurement, please feel free to consult us.
Price range
P2
Delivery Time
P3
It varies depending on the quantity, so please contact us for more information.
Model number/Brand name

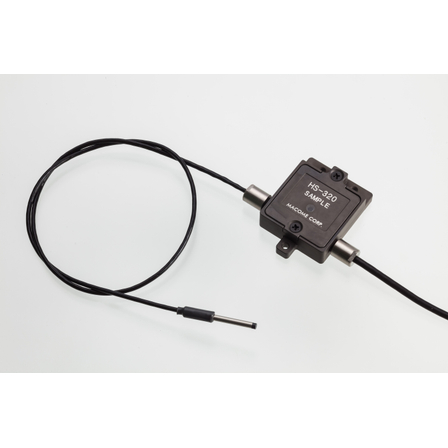

HS-320 High Precision 0.05μ Non-contact Precision Positioning Magnetic Sensor Makome Research Institute
Applications/Examples of results
High-precision origin detection for machining centers For thermal expansion compensation of ultra-precision machining machines Origin detector for linear encoders Origin detectors for XY stages and rotary tables High-precision positioning
catalog（5）
Download All Catalogs
CAD data（10）
| Model number | overview | File |
|---|---|---|
| HS-321＋D-320 | High-precision positioning sensor for accurately detecting the center of the origin position PNP output |
|
| HS-321＋D-320 | High-precision positioning sensor for accurately detecting the center of the origin position PNP output |
|
| HS-320＋D-320 | High-precision positioning sensor for accurately detecting the center of the origin position, NPN output type. |
|
| HS-320＋D-320 | High-precision positioning sensor for accurately detecting the center of the origin position, NPN output type. |
|
| MG-210 | Magnetizing device for LS and FS |
|
| MG-210 | Magnetizing device for LS and FS |
|
| MG-220 | Magnetizing device for LS and FS |
|
| MG-220 | Magnetizing device for LS and FS |
|
| D-320 | Head holder for HS-320 and HS-321 |
|
| D-320 | Head holder for HS-320 and HS-321 |
|
