Eliminating material adhesion that does not fall off even during hammering! A case study demonstrating the prevention of resin flake adhesion.
We would like to introduce a case where the phenomenon of material adhesion in the cylindrical part of the hopper, which does not fall even after hammering, has been resolved. In this case, we were troubled by the adhesion and failure of resin flakes to drop in the cylindrical part of the hopper. As a result of lending one Brody Disk Mini for testing, we decided on the arrangement and quantity based on the results, and upon implementation, the feedback has been very positive. [Consultation Details] - Material adhesion occurs in the cylindrical part of the hopper. - The material does not fall even after hammering. *For more details, please refer to the related links or feel free to contact us.
basic information

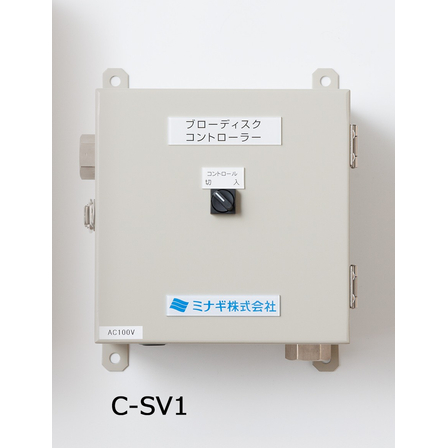

【Introduction Overview】 ■Contents: Resin flakes ■Hopper diameter: 300 ■Cylindrical section height: 500 ■Adhesion range: Throughout the circumference at a height of 250mm in the upper and lower center of the cylindrical section ■Equipment arrangement: 4 Brodie Disk Minis on the same circumference, arranged in 2 tiers for a total of 8 units ■Control: Simultaneous air ON/OFF for 8 Brodie Disk Minis using a controller C-SV1 with 1 built-in solenoid valve 【Product Specifications, etc.】 ■Brodie Disk Mini BD-08S-B: 8 units ■Controller C-SV1: 1 unit *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
