Chamber-type vacuum packaging machine | Vacuum packaging of industrial products
![◆Packaging Examples [Food]](https://image.mono.ipros.com/public/premium/image_category/8d2/1429594/IPROS15834695824628928338.jpg?w=140&h=140){kind=small}
Perform vacuum treatment on the entire bag to minimize air retention and package multiple packs under the same conditions.
The pre-made bag containing the product is placed inside the chamber, and after simultaneously reducing the pressure on both the inside and outside of the bag, the bag opening is sealed within the same chamber. This method minimizes dependence on nozzle positioning and the operator's handling, making it suitable for complex shapes that tend to trap air in deep areas or recesses of the product, as well as for parts coated with rust-preventive oil. Aluminum three-side seal bags, high barrier bags, and PE bags can be considered based on the product and storage/shipping conditions. The lineup ranges from tabletop models to standalone models with larger chamber sizes and double chamber types, allowing selection based on product dimensions and production volume for small to medium and large products. Furthermore, the C370, equipped with two 900mm sealing bars, can accommodate long products such as shafts, rails, cables, harnesses, and chains. In the double chamber type, while one side is under vacuum and sealing, the other side allows for the retrieval of packaged products and the setup of the next product. This replaces the waiting time in the vacuum process with preparation work, facilitating a continuous packaging cycle. If multiple packs can be arranged within the chamber, they can be processed simultaneously under the same reduced pressure environment and settings. LIC conducts packaging tests with actual products and creates sample packs.
basic information

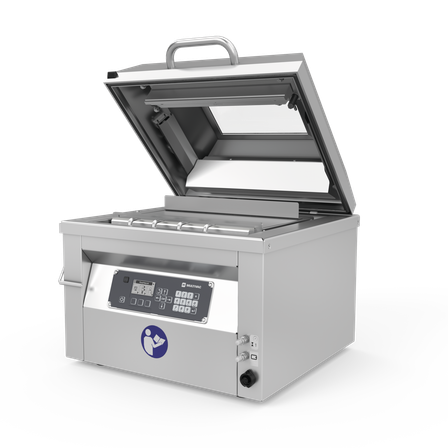

- Method: Chamber-type vacuum packaging using pre-made bags - Compatible packaging materials: Aluminum three-side seal bags, high barrier bags, PE bags - Vacuum exhaust setting: In units of 1 mbar - Seal time setting: In units of 0.1 seconds - Program storage and retrieval of packaging conditions - Lineup: Tabletop model C200, standalone models C350/C370/C400, double chamber models C450/C500/C550 - C200: 465mm seal bar - C350: Two 440mm seal bars - C370: Two 900mm seal bars, suitable for long products - C400: Option to choose between 650mm and 450mm seal bar configurations - Seal bar that can be removed without tools - Supports simultaneous packaging of multiple packs. The processing quantity varies depending on product and bag dimensions, arrangement, vacuum time, etc.
Price information
It varies depending on the selected model, product/bag dimensions, and the required number of packages. A quote will be provided after packaging tests and specification confirmation with the actual product.
Delivery Time
Model number/Brand name
MULTIVAC C Series (C200/C350/C370/C400/C450/C500/C550)
Applications/Examples of results
<Examples of Use> Packaging for moisture-proofing, dust-proofing, and rust-proofing; packaging for overseas transportation and long-term storage; storage of prototypes, inter-process storage, and transportation evaluation. Semiconductor-related products, electronic components, printed circuit boards, precision parts and precision instruments, ball bearings, gears, chains, spare parts, metal processing parts, automotive parts, shafts, linear guides, rails, cables, harnesses, and machine parts coated with rust-proof oil. De-gassing of complex-shaped products and products with recesses, vacuum packaging of parts with rust-proof oil, packaging of long products, simultaneous processing of multiple packs, comparison of aluminum three-side seal bags, high barrier bags, and PE bags, and establishing vacuum and sealing conditions before mass production.
Line up（7）
| Model number | overview |
|---|---|
| C200 | Desktop type |
| C350 | Standalone type |
| C370 | Standalone type |
| C400 | Standalone type |
| C450 | Double chamber type |
| C500 | Double chamber type |
| C550 | Double chamber type |
