URKM | Aluminum Thick Plate Compatible Cutting Machine Running Saw
Support for thick plates, labor-saving, high-speed running saw. Thick plates can be transported with minimal force. This improves work efficiency and contributes to labor-saving and cost reduction.
The "URKM Series" is a circular saw cutting machine that precisely cuts aluminum plates. In addition to its powerful performance and efficient dust collection, the cutting conditions minimize cutting heat, reducing overcutting and enhancing machining accuracy. It allows for the selection of the optimal saw blade for cutting thick aluminum plates, enabling a reduction in cutting time. Reference cutting speed for A5052 with a thickness of 70 mm: F = 2500 mm/min. With two cutting modes—single-position cutting (ABS) and single automatic feed (INC)—efficient cutting operations can be performed. Additionally, it adopts an easy-to-read and simple-to-operate LCD touch panel control system. 【Features】 - The box motion (blade descent followed by blade retraction) reduces the waiting time for operators as the clamp opens after the blade descends. - With workpiece floating ball bearings, a 1-ton aluminum plate can be moved freely in 360° with just 30 kgf of force. - The workpiece is secured with clamps on both sides of the blade, ensuring safe and stable cutting without vibrations. - The telescopic circular saw cover follows the saw blade, efficiently sucking up chips. - The back gauge achieves precise dimensional accuracy with measurements in 0.01 mm increments.
basic information
■URKM ・Cutting capacity Thickness 100mm ・Cutting width Width 1600mm/2500mm/3100mm ・Back gauge depth 1300mm/1600mm
Price range
Delivery Time
Model number/Brand name
URKM2500J-13 - Aluminum sheet cutting machine with back gauge
Applications/Examples of results
Non-ferrous metal cutting processing sales store Non-ferrous metal materials trading company
Detailed information
-
✅ Suction-mounted clamp device
-
Air floating ball bearing unit
-
✅ Option: Slide Auxiliary Table
-
✅ Option Front Gauge
-
✅ Option: Back gauge with lateral pressing device
-
✅ Option: Side-pressing Device for Work
-
✅ Option: Clamp button dual-hand operation select switch
-
✅ Option: Is the dust collector for flexible containers three times easier for chip recovery? The dust collector currently in the spotlight.
Related Videos
Line up（3）
| Model number | overview |
|---|---|
| URKM1600J-16 | - Cutting capacity: Thickness 100 mm × Cutting width 1600 mm × Length 1600 mm |
| URKM2500J-13 | - Cutting capacity: Thickness 100 mm × Cutting width 2500 mm × Length 1300 mm |

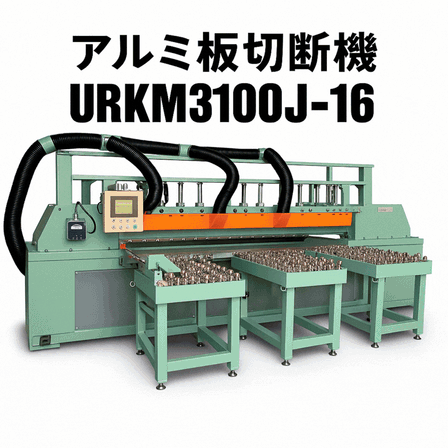

| URKM3100J-16 | - Cutting capacity: Thickness 100mm × Cutting width 3100mm × Length 1600mm |
