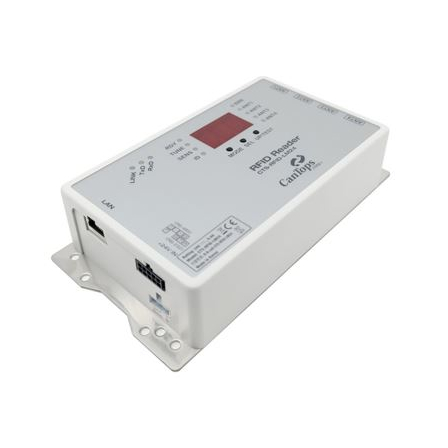

CANTOPS RFID Reader
One unit supports 4 channels! Cost reduction and space-saving possible!
CANTOPS' RFID reader operates at a frequency of 134.2 kHz and is capable of communicating with transponders compliant with ISO11784 and ISO11785 standards. It is primarily used as an RFID reader for FOUPs in semiconductor manufacturing lines and operates stably even in noisy environments. Additionally, it supports various communication protocols and interfaces, making it a suitable alternative to other companies' RFID readers. <Features> - Available in two types: 4-channel type and 1-channel dedicated type - Stable operation in environments with high radio noise - In the event of communication anomalies, the Auto Tune function automatically detects the optimal frequency band and re-establishes communication - Supports a variety of communication protocols - Can be used as a substitute for products from other manufacturers - Logging function allows for the recording and analysis of approximately 10,000 data entries, including communication data, error details, and absolute timestamps - Supports RS-232C, RS-485, and Ethernet communication *For detailed information, please contact us.
basic information
<Communication Specifications> Frequency: 134.2 kHz Reading Time: Minimum: 130ms / Page, Maximum: 500ms Writing Time: Minimum: 390ms / Page, Maximum: 1500ms Maximum Reading Distance: 110–160mm (varies by antenna type) Maximum Writing Distance: 70–110mm (varies by antenna type) Communication Standards: RS-232C, RS-485, Ethernet Communication Protocols: CanTops Protocol I / II, SECS-I / HSMS / GEM *Compatible with other manufacturers' protocols Communication Speed (bps): 4800, 9600, 19200, 38400, 57600, 115200 *For detailed information, please contact us.
Price range
Delivery Time
Model number/Brand name
CANTOPS
Applications/Examples of results
For detailed information, please contact us.
Detailed information
Related Videos
Line up（3）
| Model number | overview |
|---|---|
| RFID READER LM24 | Serial, Ethernet communication compatible, 4-channel support |
| RFID READER LS21 | Compact type, serial communication, supports 1 channel. |
| RFID READER LE21 | Compact type, Ethernet communication, supports 1 channel. |
