Frequency Doubling Laser MSL | High Efficiency SHG and Frequency Conversion System
Achieving high-efficiency SHG with a monolithic resonator. A frequency doubling system that provides stable short-wavelength laser output without the need for alignment.

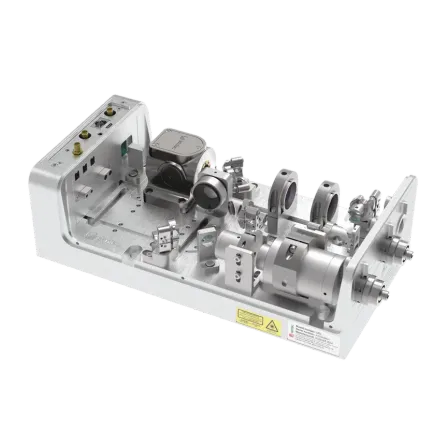

High-efficiency frequency doubling and high stability, alignment-free operation The MSL series is a laser system that achieves high-efficiency second harmonic generation (SHG) over a wide wavelength range. Based on a monolithic linear resonator design, it eliminates the high alignment sensitivity seen in traditional bowtie resonators, enabling stable and high-performance frequency conversion. In addition to standalone operation, it also supports integration with amplification laser systems, allowing for stable access to new wavelengths while minimizing user adjustments.
basic information
- Conversion efficiency: 70~90% - Monolithic alignment-free resonator - Wide wavelength range compatibility - Built-in locking mechanism and control electronics - Supports both standalone operation and system integration 【Related Products】 - Ultra-narrow linewidth laser CES | Approximately 5kHz narrow linewidth support A high-coherence seed light source for quantum technology and precision spectroscopy. Compatible with wavelength conversion to visible and ultraviolet light when combined with MSL. https://inst.santec.com/jp/products/quantum-instruments/quantum-lasers/ces - Tapered amplifier MOAL | 650–1080nm, up to 5W support A tapered optical amplifier that increases the output power of seed lasers. Can be used as a high-power fundamental wave input to MSL. https://inst.santec.com/jp/products/quantum-instruments/amplifiers/moal
Price range
Delivery Time
Model number/Brand name
MSL
Applications/Examples of results
- Supports visible/ultraviolet wavelength generation from infrared light sources - Ideal for atomic physics applications (transitions of Sr, Yb, Rb, Cs) - Suitable for precision spectroscopy applications - Optimal for quantum optics and sensing applications - Supports nonlinear optics and wavelength conversion applications
Detailed information
-
<High Efficiency SHG Conversion> Achieves a high second harmonic generation (SHG) conversion efficiency of 70-90% for fundamental wave input (0.5-5W) from fiber amplifiers and the like. Configurations for low output and high output can be selected according to the application.
-
<High Stability with Monolithic Resonators> By adopting a monolithic linear resonator, we reduce the repetitive alignment work required by conventional bowtie-type resonators. This enables stable frequency conversion over an extended period.
-
<Wide Wavelength Response Range> Supports a variety of combinations of fundamental waves and harmonics such as 740/370nm, 798/399nm, 922/461nm, 960/480nm, and 1020/510nm. It can be utilized in a wide range of applications including atomic physics, quantum technology, and precision spectroscopy.
-
<Complete Integrated Control System> Built-in temperature stabilization function and PDH/FM locking mechanism. Operable without an external controller, making it easy to integrate into research equipment and evaluation systems.
-
<Integration with Laser Systems> In addition to being used as a standalone frequency doubling module, it also supports high-power systems combined with lasers and optical amplifiers. It efficiently achieves wavelength conversion to visible and ultraviolet light.
