High Power Frequency Doubling Laser MSHG | Integrated SHG
Integration of seed laser, optical amplifier, and high-efficiency SHG resonator. Achieves high output and high stability short-wavelength laser without the need for alignment. Turnkey laser system.
Turnkey high-output frequency doubling laser system The MSHG is a laser system that integrates a seed laser, optical amplifier, and high-efficiency SHG resonator into a single unified platform. It is designed to achieve both high performance and excellent operability, providing stable and high-output laser light even in wavelength ranges that have traditionally been difficult to access. Furthermore, by adopting a robust monolithic linear resonator design similar to the MSL series, it eliminates the complexity of alignment and ensures consistent high-performance operation over the long term.
basic information
- Integrated system combining seed, amplification, and frequency doubling - High conversion efficiency of approximately 60% - Alignment-free resonator due to monolithic structure - Optimized for major atomic transition wavelengths - Fully integrated control electronics 【Related Products】 - Frequency Doubling Laser MSL | High Efficiency SHG Compatible A frequency conversion system compatible with high-efficiency SHG. https://inst.santec.com/jp/products/quantum-instruments/frequency-conversion/msl - Tapered Amplifier MOAL | 650–1080nm, up to 5W A tapered optical amplifier that boosts the output of seed lasers. https://inst.santec.com/jp/products/quantum-instruments/amplifiers/moal - Ultra-Narrow Linewidth Laser CES | Approximately 5kHz Narrow Linewidth Compatible A seed light source for quantum technology and precision spectroscopy. https://inst.santec.com/jp/products/quantum-instruments/quantum-lasers/ces
Price range
Delivery Time
Model number/Brand name
MSHG
Applications/Examples of results
- Laser cooling and trapping (Sr, Yb, Rb, Cs) - Optical clock systems - Quantum optics and atomic physics - Precision spectroscopy - High-power visible/ultraviolet laser generation
Detailed information
-
<Integration of Laser, Amplification, and SHG> Integrating seed laser, optical amplifier, and frequency doubling (SHG) resonator into a single housing. Reduces the effort required to build laser systems and makes it easy to utilize high-output short-wavelength lasers.
-
<High Efficiency Frequency Conversion> Achieves a typical SHG conversion efficiency of 50-60% across the entire system. By optimizing according to conditions, it can also accommodate a maximum efficiency of approximately 70%.
-
<Resonator Structure That Does Not Require Alignment> By adopting a monolithic linear resonator, complex optical adjustments by the user are eliminated. It maintains stable output over a long period.
-
<Corresponding to major atomic transition wavelengths> Corresponds to major atomic transition wavelengths such as 399nm (Yb), 420/480nm (Rb), 461nm (Sr), and 510nm (Cs). Suitable for laser cooling and quantum technology research.
-

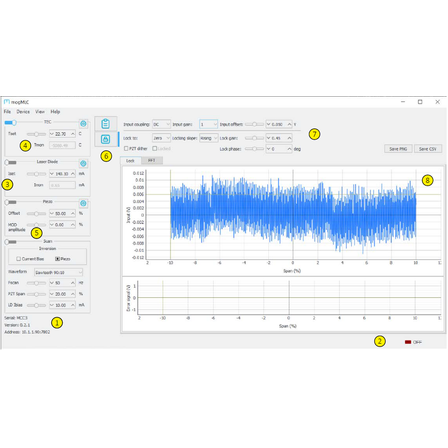

<Complete Integrated Control System> Built-in temperature control function and PDH/FM locking mechanism. No external controller is required, making it easy to implement in research facilities and integrate into systems.
