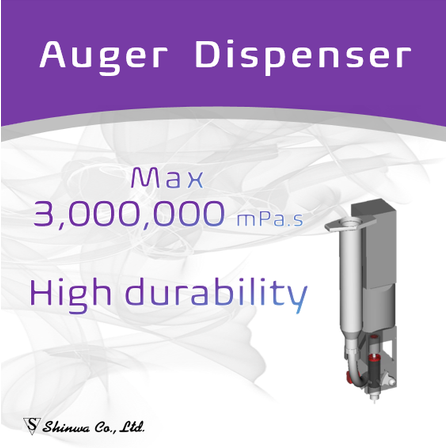

Screw dispenser [LED post-process / board mounting]
Achieving ultra-precise dispensing through screw rotation! Extensive track record and versatility in LED/line coating/3D coating!
【Dispensing Industry Achieves Capability No.1】 Shinwa Screw Dispenser - LED Post-Processing / PCB Assembly Process ▶ Adjustment of dispensing amount based on screw rotation (Compatible with high-viscosity materials) ▶ Reduction in the number of equipment investments through high-speed dispensing (Compared to air dispensers: 2 to 5 times processing capacity) ▶ Increased stability of dispensing amount through room temperature discharge ▶ Significant reduction in yield loss, increased production efficiency! 【Applications】 ■ Secondary Underfill ■ LED Phosphors (General) (SMD/Side View/Dam & Fill, etc.) ■ Cream Solder (φ250~φ300μm) * The dispensing diameter may vary depending on the solder particles used. ■ Ag Paste ■ UV Curing Resin, among others.
basic information
【Features】 ◆ Adjustment of application amount by screw rotation (excellent application stability)! ◆ Achieves room temperature dispensing of high-viscosity materials! → Capable of discharging high-viscosity materials by adopting a screw method. (MAX: 500,000 mPa.s can be dispensed at room temperature) ◆ Realizes high-speed dispensing (compared to air: 1.5 to 2 times processing capacity) ◆ Adopts a one-touch replacement method, significantly reducing replacement time! ◆ Compatibility with line dispensing (acceleration/deceleration and corner dispensing adjustment functions) ◆ Achieves low running costs ◆ Simple software program We offer free sample testing for those considering a purchase. For details, please request materials or refer to the catalog.
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
【Wide-ranging achievements in various industries/materials】 Shinwa Screw Dispenser ■Semiconductor back-end processes Dam & Fill / Cream solder / Ag paste / UV curing resin / Others ■LED back-end processes General dispensing of phosphors (SMD/PLCC/Dam & Fill, etc.) COB packages (5mg to 360mg) ■Board mounting Cream solder / Ag paste / Moisture-proof materials / UV curing resin Others ■HDD back-end processes Ag paste / Thermosetting resin / 3D dispensing Others ■MEMS Ag nano paste / UV nano paste Others
catalog（3）
Download All Catalogs
News about this product（2）
-
Notice of Participation in Internepcon 2018: Solder Jet Demonstration! Free Samples for the First Visitors
Dear Sir/Madam, I would like to congratulate you on the continued prosperity of your company. I sincerely appreciate your exceptional support. Our company will be exhibiting at the 47th InterNEPCON Japan, which will be held at Tokyo Big Sight from January 17 (Wednesday) to January 19 (Friday), 2015. We would like to cordially invite you to see our ultra-precision dispenser equipment and high-precision dispenser (cream solder jet). All of our employees and staff are looking forward to your visit. ◎ Exhibition Booth: E7-38 <Exhibition Details> - Cream solder jet dispenser demonstration (Sample application gifts available on a first-come, first-served basis) - Proposals and displays of optimal equipment for smartphone component mounting and automotive semiconductor applications - Business negotiation room available <Contact Information> Shinwa Co., Ltd. Mechatronics System Center Contact: Ozawa TEL: 052-739-0175 E-Mail: kenji-ozawa@shinwa-jpn.co.jp
-
Free sample testing currently in progress
Good news for those who are seeking to identify issues and improvements in the dispensing process! Our company is conducting free sample tests on an ongoing basis to improve users' coating problems. In particular, we can provide the best match proposals for users who require coating heads suitable for high-viscosity materials and have strict demands for coating position accuracy! The main contents of the implementation include: - Coating weight accuracy evaluation - Coating shape evaluation - Cycle time evaluation We will compare these with existing equipment. Later, we will submit a coating evaluation report aimed at solving your company's issues! <Contact Information> Shinwa Co., Ltd. Mechatronics System Center Contact: Ozawa TEL: 052-739-0175 E-Mail: kenji-ozawa@shinwa-jpn.co.jp
