Load retention even during tilting and inversion! Compact inline reducer for various testing equipment.
No need for brake or stopper! It can hold the load while stopped and allows work or experiments to be conducted at an angle. The input and output shafts are aligned in a straight line, achieving space-saving design!

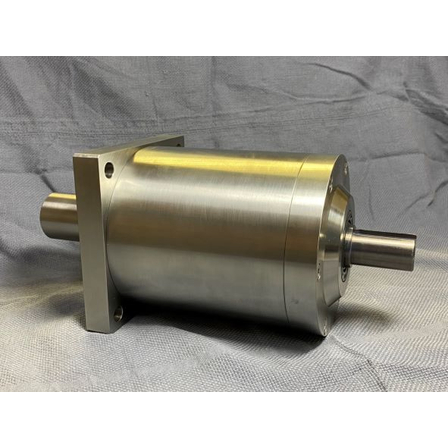

This is a compact inline reduction gear equipped with our company's self-locking mechanism (Shoji-Lock). For example, it can hold the load even if the movement is stopped during the ascent, rotation, or tilting of the device, making it suitable for requirements such as wanting to conduct experiments or perform tasks at a stopped position. Another feature is that, unlike conventional worm reduction gears with self-locking functions that require a considerable amount of space due to the input and output shafts being orthogonal, this design has the input and output shafts aligned in a straight line (inline), allowing for a lightweight, smart, and compact design that is easy to integrate into various devices. The lineup can be selected based on output shaft torque and reduction ratio, with options available for output shaft torque ranging from 5 to 100 kgm (load × torque arm). Some products are also available in all stainless steel for cleanroom compatibility. The basic model is coated with black Teflon, which is resistant to rust. Additionally, it can operate and maintain load even without power during emergencies. It is being introduced as a mechanical element in various applications, including defense and military, plant-related industries, semiconductor manufacturing equipment, automotive assembly lines, and device lid opening and closing.
basic information
【Lineup】 SRM (Manual Only / Low Speed) Series Output shaft torque (Load × Torque Arm) Available for 5/6/12/25/50/100 kgm Several reduction ratios available for each model All stainless steel available No handle included SRE (Electric Tool Assist / High Speed) Series Output shaft torque (Load × Torque Arm) Available for 3/6/12/25/50 kgm Several reduction ratios available for each model
Price information
-
Delivery Time
Model number/Brand name
SRM/SRE Series
Applications/Examples of results
Space-saving compared to worm gear reducers. It is also efficient. Many applications in equipment where self-holding is desired during operation, such as raising and lowering furnaces and opening and closing doors. Used by semiconductor equipment manufacturers, automotive manufacturers (factories), plant manufacturers, and in the architecture and interior design fields.
Detailed information
-
We have a lineup available. We offer various models based on output torque and reduction ratio. For more details, please check our website or catalog. The basic surface treatment is a black Teflon coating that is resistant to rust.
-
We also have stainless steel options available. It is possible to manufacture entirely in stainless steel for clean room compatibility.
Line up（3）
| Model number | overview |
|---|---|
| SRM-005-11SS | All stainless steel, compatible with clean rooms. |
| SRM006~100 | Standard lineup of manual-only inline reducers compatible with 6, 12, 25, 50, and 100 kg·m. Various reduction ratios are also available. Please refer to the catalog for more details. |
| SRE003~050 | Standard lineup of electric inline reducers compatible with 3, 6, 12, 25, and 50 kgm. Various reduction ratios are also available. Please refer to the catalog for more details. |
catalog（4）
Download All Catalogs
CAD data（10）
| Model number | overview | File |
|---|---|---|
| SRM-005-11 | Inline reduction gear Permissible rated holding torque 5 kgm, manual use only Reduction ratio i = 11 Stainless steel version also available |
|
| SRM-006 | Inline reduction gear Permissible rated holding torque 6 kg·m for manual use (low-speed input shaft rotation type) |
|
| SRM-025 | Inline reduction gear Permissible rated holding torque 25 kg·m, manual use only (input shaft rotation low-speed type) |
|
| SRM-100 | Inline reduction gear Permissible rated holding torque 100 kg·m manual only (input shaft rotation low-speed type) |
|
| SRM-012 | Inline reduction gear Permissible rated holding torque 12 kg·m For manual use (low-speed input shaft rotation type) |
|
| SRM-050 | Inline reducer Permissible rated holding torque 50 kgm Manual only (input shaft rotation low-speed type) |
|
| SRE-006 | Inline reduction gear Permissible rated holding torque 6 kg·m, suitable for both electric and manual operation (high-speed input shaft rotation type) |
|
| SRE-012 | Inline reduction gear Permissible rated holding torque 12 kg·m, suitable for both electric and manual operation (high-speed input shaft rotation type) |
|
| SRE-050 | Inline reduction gear Permissible rated holding torque 50 kg·m, suitable for both electric and manual operation (high-speed input shaft rotation type) |
|
| SRE-025 | Inline reducer Allowable rated holding torque 25 kg·m Electric and manual dual-use (input shaft high-speed rotation type) |
|
Recommended products
Distributors
The load-holding function equipped reduction mechanism (shoji-lock) has been developed for application products such as winches and rack jacks since the early 2000s. Steady sales activities have borne fruit, and it has begun to be adopted for various applications. Unlike conventional worm reduction gears with self-locking functions where the input and output shafts are orthogonal, our design features them in a straight line (inline), allowing for a compact design and space-saving, which has received high praise and resulted in a diverse range of practical examples. (Patents have been obtained in Japan, the United States, the EU (Germany, France, the UK), China, South Korea, and Taiwan.) Furthermore, starting in April 2023, we launched a new overseas parts procurement business, beginning with Vietnam. Currently, a majority of our parts are procured overseas, and leveraging our achievements and network, we aim to assist companies struggling with cost reduction in parts procurement.
