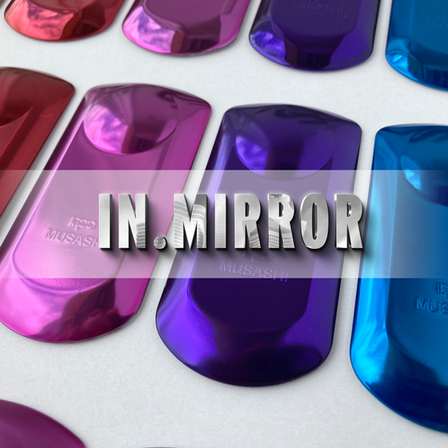

Indium Mirror Coating System Color Variations
Expressive Indium Mirror Coating
Adding decorative elements or UV hard coats on top of the indium mirror coat (intermediate layer) for multifunctionality and diverse expressiveness. The indium mirror coating system does not guarantee the expression of image photos. It represents a world of creative possibilities. Verification through painting tests is necessary. For creating samples and establishing conditions for sample production, the Data Pro (a painting robot dedicated to data creation) is optimal. - Color samples - Various color developments possible with matte and mirror finishes - The base material is diverse.
basic information
The Indium Mirror Coating System is a dedicated multilayer coating process developed to achieve a highly reflective mirror film primarily composed of indium. The process consists of 3 coats and 3 bakes, where each layer undergoes application, drying, and heat curing (baking) to form a coating with excellent adhesion, heat resistance, and optical performance. ■ Baking Conditions (Reference Values) ProcessTemperatureTimePurpose 1st Bake (after primer): 80–100 ℃10–15 minutesSolvent evaporation and mild curing of the base layer 2nd Bake (after intermediate coat): 120–150 ℃15–20 minutesStrengthening adhesion of the intermediate layer and improving smoothness 3rd Bake (after top coat): 150–180 ℃20–30 minutesComplete curing of the final film and stabilization of mirror finish *Conditions can be adjusted according to the heating method (hot air circulation / infrared / gas type, etc.) and work material. ■ Environmental Management Requirements (Recommended) Cleanliness: Equivalent to Class 10,000 (ISO 7) or higher Temperature: 22–26 ℃ Relative Humidity: 45–60 % Static Electricity Measures: Recommended installation of conductive flooring and ionizers *For more details, please refer to the materials. Feel free to contact us with any inquiries.
Price information
Please contact us.
Delivery Time
Model number/Brand name
Indium mirror coating system
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
Detailed information
Line up（4）
| Model number | overview |
|---|---|
| 3R3C Line Dancer 4gun 8top | This is a painting system consisting of three robots, with one robot responsible for one coat. It has a short movement time, high productivity, and is suitable for mass production. It features a 3R3C line dancer with a four-gun, eight-top automatic painting system (for mass production), with one robot equipped with four guns and a conveyor device (table) with eight tops. |
| 3R3C Swamp Pro 2 Gun 4 Top | The system processes three coats (one color per robot) using three robots. It is a compact type of semi-mass production system for plating and painting. The Swan Pro is a standalone autonomous robot, and the transfer is handled by a double turn with a rotating device mounted on the Swan Pro. It is separated from the conveyor, and the painting object transport device, Co_Swan, is responsible for handling, preventing contamination of the line and issues such as painting defects. This is the 3R3C Swan Pro 2-gun 4-top automatic painting system (for semi-mass production). |
| 1R3C Line Dancer Turret 3Gun 4top | A single robot processes three coats (one robot, three colors). It is a production line for small quantities and a wide variety of plating and painting. It is equipped with a turret gun unit that can mount three guns, allowing for speedy color changes. This is a compact painting system. 1R3C line dancer with a 3-gun turret and 4-top automatic painting system (for small quantities and a wide variety). One robot is equipped with three guns and a conveyor device (table) with four tops. |
| 1R3C Swamp Pro Turret 2Gun 4top | Batch painting system: A batch painting system that processes three coats (three colors with one robot). After each coat, it goes to a drying oven operated by a worker. This system is designed for small-scale production and helps keep initial costs low. 1R3C Swan Pro 2 Gun Turret 4 Top batch painting system (for small quantity and diverse products) features a robot equipped with two guns and a conveyor device (table) with four tops. |
