Painting Robot Lineup "Takubo Engineering"
Painting robots that can be selected according to production volume and paint type.
【Not Just a Painting Robot】 The painting robot manufactured by Takubo Engineering is a dedicated "robot system" for painting, unlike general robots. It comes standard with everything necessary for painting, including the robot, controller, spray gun, syringe pump system, and transport device (with rotation mechanism). 【Two Types: Suspended and Standalone】 The basic types of painting robots are broadly classified into "suspended" and "standalone." They are designed for mass production and small-batch, diverse production. 【Equipped with Rotational Painting Technology R】 We have independently developed the painting technology "Rotational Painting Technology R" using robots. This achieves high-quality thin film painting while eliminating unnecessary paint usage and improving painting costs. 【Standard Equipment: Proprietary Teaching Assistant Software Swannist】 【Customizable】 We incorporate various technologies to achieve painting, such as multiple gun attachment units and turret gun units. For automatic mass production lines, we primarily use the Line Dancer M-type robot, which boasts a portable weight capacity of 20 kg and can accommodate up to 12 spray guns to enhance effectiveness. We adapt according to the type of paint, production volume, and workpiece.
basic information

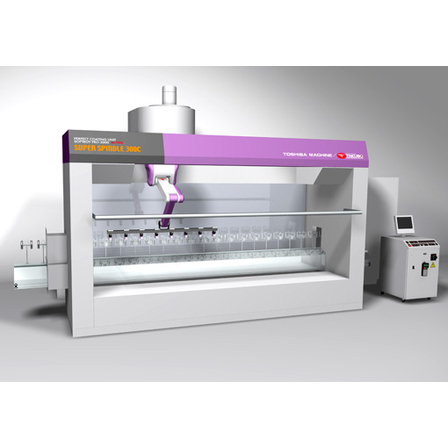

【Line Dancer】 This is a painting robot specialized for painting smartphone covers and cases, capable of mounting up to 12 guns on a single robotic arm, making it one of the largest in the world. 【Line Dancer Libero】 The "Soft Boy PRO Super Spindle Painting" is a completely new painting system developed as a painting robot system specifically for mobile phones and mobile communication devices, designed to reduce overall energy consumption and offer high expandability. 【Data Pro】 A compact painting robot system developed for data creation. This robot is designed with the idea of separating it from the production line to avoid dual use for condition setting. It can be used for creating color samples, test painting, and for training painting robot operators, as well as for condition setting for production. Additionally, it allows for condition setting at the headquarters, enabling production with robots located in various places, thereby eliminating quality variations. 【Swan S】 The Swan S is a type of Swan robot transport device that does not have a W-turn. By placing multiple Swan S units on the production line, it enables continuous mass production.
Price range
Delivery Time
Model number/Brand name
Line Dancer Line Dancer Libero Swan Pro Painting Robot Lineup
Applications/Examples of results
Based on the painting technology developed as a mass production machine for mobile phone cases, we have adapted it for painting various interior and exterior parts such as automotive components, steering wheels, switches, air spoilers, wheel caps, door handles, door mirrors, and lights, as well as many other works including home appliances, parts, and building materials. We have a proven track record of deliveries to various locations around the world, including China, South Korea, the United States, Mexico, Vietnam, Thailand, and Malaysia. "Door Mirror," "Shark Antenna," "Door Mirror" [Indium Mirror Coating System] It is adopted as a system for indium mirror coating as a chrome-like painting system.
Detailed information
-
【Swan Pro】 A painting robot equipped with multiple guns. It efficiently and advancedly realizes the technology of rotational painting R with simple movements using a ball spline. All control is handled by the proprietary application "Swanist." 【Swanist】 The core of the robot system that controls everything from teaching, condition setting, painting management, painting cost management, to paint management and control (syringe pump system). 【High-Precision Conveying Device】 The robot system manufactured by Tatakubo Engineering incorporates a rotary conveying device (such as W-turn) designed with a rotating mechanism. It achieves high-precision and stable workpiece conveyance in the painting process. It integrates and manages the robot movements, spray conditions, and rotation control necessary for obtaining high-quality thin film coatings through the teaching control system "Swanist." 【Syringe Pump System】 It eliminates unnecessary paint delivery and accurately controls the required paint. Therefore, it contributes to significant reductions in painting costs.
-
Line Dancer / Line Dancer Libero It is a mass-produced painting robot system. Additionally, we also offer a lineup of the "W Turn Type," which supports small-batch production of various types.
-
【Data Pro】 The robot is a robot system based on a line dancer, specifically designed for data creation. It can be used for setting production conditions, test painting, and creating paint sample boards. Additionally, it can also be used for training personnel involved in robotic painting. 【Transferring data to scattered factories to eliminate quality variation】 The painting data, such as painting conditions and teaching created with Data Pro, can be transferred and reproduced if it is a painting robot from Takubo Engineering. With simple adjustments, the robots at local factories can achieve production of equivalent quality.
-
Example of Garnish Support: Swan Pro Rotational coating examples for automotive interior parts such as garnishes and monitor panels.
-
Example of Optical Lens Body Compatibility - Swan Pro Example of Rotational Coating for Optical Lens Bodies A cylindrical lens body is attached to a special attachment with a rotation mechanism (OP) on a W-turn, and is rotationally coated using a 4-gun configuration Swan robot. This is suitable for cylindrical workpieces such as water bottles.
-
【Automobile Door Handle Application Example - Swan Pro】 The turret gun (2-gun) option is mounted on the Swan robot to perform thin film coating on both sides (inside and outside) of the door handle using rotary painting. 【Turret Gun】 This gun unit is suitable for painting complex-shaped workpieces and fixtures that are difficult to reach.
-
【Turret Gun】 Multiple gun units attached to the tip of the swan robot. Color changes are performed quickly.
-
[Swan Pro + Turret Gun] Installation example. Compatible with batch type and automatic type (with handling robot). Adaptable from small-batch, diverse products to mass production, and supports two colors. Color changes are quick.
Related Videos
Line up（12）
| Model number | overview |
|---|---|
| Swan Pro | Self-supporting 4-axis robot equipped with a swivel transport device with a rotation mechanism. |
| Line Dancer Libero | Hanging type painting robot (S type) continuous type (compatible with conveyor line) |
| Line Dancer Libero W Turn 4 Top | Hanging type painting robot (S type) with a separable (batch type) rotating mechanism for 4 rings and a lunar revolving transport device. |
| Line Dancer Libero W Turn 2 Top | Hanging type painting robot (S type) detachable (batch type) with rotating mechanism for 2 rings and lunar rotation conveying device. |
| Line dancer | Hanging type painting robot (M type) continuous type (compatible with conveyor line) |
| Line dancer W turn 4 top | Hanging type painting robot (M type) detachable (batch type) with rotating mechanism for 4 rings and lunar rotation conveying device. |
| Line dancer W turn 2 top | Hanging type painting robot (M type) detachable (batch type) with rotating mechanism for 2 rings and a lunar revolving transport device. |
| Line Dancer Data Pro | Data creation dedicated painting robot |
| Swan-S | A painting robot set up in multiple units for simultaneous painting. No transport device. |
| Swan-D | Data creation swan robot system mini conveyor integration |
| Swan-C | A painting robot without W-turn that can be installed on existing spindle lines. |
| Ko Su-wan | Explosion-proof painting material handling robot |
