You can use the image processing system stably in the factory | CXP camera.
High noise resistance, easy-to-remove and robust connectors, and thermal stability make it suitable for system stabilization | CoaXPress Area Scan Camera Series
The area scan camera series "CoaXPress," developed for high-speed image transmission in machine vision applications. ★About the CoaXPress Camera Interface - High noise resistance. Coaxial cables have high shielding performance against electromagnetic noise, making them less susceptible to external noise generated in factory environments, thereby improving the reliability of data transmission. - Robust connectors. Robust connectors can be used (DIN, MicroBNC). The connections are secure, and the likelihood of disconnection or contact failure due to vibration is low, making them suitable for maintenance-free, long-term operation. - Simplified heat management and thermal stability. Heat management can be simplified. As mentioned earlier, CXP cameras are highly integrated, but by using a single cable, it becomes easier to concentrate the thermal design (heat dissipation design) of the entire system, and since the cable itself is less likely to become a heat source, it contributes to the thermal stability of the camera. *We also offer demo units for loan, so please feel free to contact us.
basic information
【Lineup】 Adoption of Sony's global shutter CMOS sensors: Pregius 2nd Gen, 3rd Gen, Pregius S (4th Gen), and Gpixel's GMAX Series. 【29×29mm 1Lane Model】 ■ Equipped with Pregius 3rd Gen / Pregius S (4th Gen) ■ 0.5M/2M/5.1M/8.1M/12.4M/16.2M/20.4M/24.6M ■ UV Model 【40×40mm 1Lane Model】 ■ Equipped with Pregius 2nd Gen ■ 3.2M/5M/8.9M/12M 【60×60mm 4Lane Model】 ■ Equipped with Pregius S (4th Gen) ■ 16.2M/20.4M/24.6M 【25M CXP12×4Lane Model】 ■ Equipped with GMAX0505, 25 million pixels ■ Maximum output of 150fps with CXP-12×4Lane connection ■ NIR Model 【65M CXP-6/-12×4Lane Model】 ■ Equipped with GMAX3265, 65 million pixels ■ Maximum output of 71fps with CXP-12×4Lane connection
Price range
Delivery Time
Model number/Brand name
CoaXPress AreaScanCamera Series
Applications/Examples of results
Semiconductor front-end/back-end visual inspection, final visual inspection of semiconductor components, visual inspection of assembled boards, various alignments, and industrial image processing focused on semiconductors and electronics.
Detailed information
-

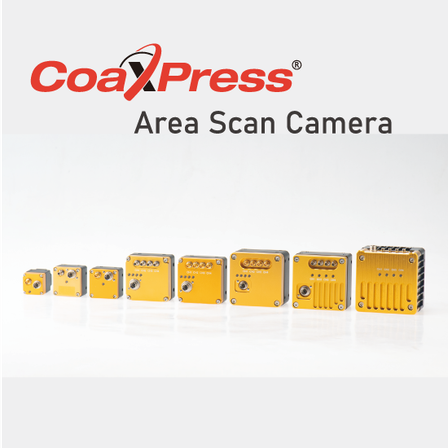

■CoaXPress Area Scan Camera List From left: 【29×29mm 1Lane model】 【40×40mm 1Lane model】 【60×60mm 4Lane model】 【25MP CXP-12×4Lane model】 【65MP CXP-6×4Lane model】 【65MP CXP-12×4Lane model】
-
[29×29mm 1Lane model]
-
[40×40mm 1-Lane Model]
-
[60×60mm 4Lane model]
-
25MP CXP-12×4Lane model
-
65MP CXP-6/-12×4Lane model
