【For Food Inspection】25 Megapixel 150Fps Near-Infrared Camera
For detecting foreign objects in food. High-resolution, high-speed imaging NIR camera.
In the food industry, foreign object contamination is a significant issue that can lead to consumer health hazards and a loss of trust in companies. High precision and rapid inspection capabilities are required for foreign object detection. Our 25MP NIR camera, equipped with a CMOS sensor that enhances near-infrared (NIR) sensitivity, strongly supports the detection of foreign objects in food by achieving high-resolution and high-speed imaging. 【Application Scenarios】 - Foreign object inspection on food production lines - Inspection of foods with a high risk of foreign object contamination - Foreign object detection on high-speed lines 【Benefits of Implementation】 - Improved accuracy of foreign object detection - Reduced inspection time - Prevention of defective products from being released
basic information

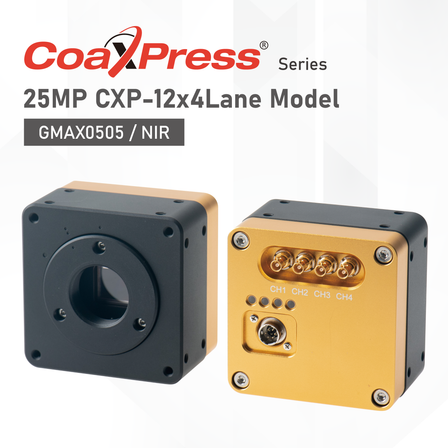

【Features】 - Image sensor "GMAX0505" - NIR-compatible model with sensitivity to near-infrared (NIR) wavelengths - Maximum output of 150.3 fps with CXP-12×4Lane connection - Supports C-mount while maintaining high resolution - 70mm square housing - Fanless - Actively adopts next-generation key devices to achieve low power consumption and low heat generation
Price range
Delivery Time
Model number/Brand name
BC-GN25M12X4
Applications/Examples of results
Various inspection and monitoring applications using near-infrared wavelengths (monitoring systems, food, medical, etc.)
Related Videos
Line up（1）
| Model number | overview |
|---|---|
| BC-GN25M12X4 | 25MP / NIR / 150.3fps / CXP-12 / C mount / Micro-BNC connector |
catalog（3）
Download All Catalogs
Recommended products
Distributors
We focus on the design, development, manufacturing, and sales of high-speed, high-resolution, and highly reliable machine vision cameras primarily using CoaXPress and CameraLink. In addition to developing standard products, we also offer development and customization tailored to customer requests. All camera design and development is carried out by our Japanese staff, ensuring design and production techniques that guarantee delicate and highly reliable standards in Japan, while integrating the dynamic action and speed of China to provide competitive products. At Japan Bopixel, we have successfully become the first camera manufacturer to utilize Ultra Low Power FPGA instead of the standard FPGA adopted by the majority of camera manufacturers. This Ultra Low Power FPGA reduces power consumption by over 50% compared to similar class FPGAs, significantly lowering power consumption and heat generation in cameras by addressing the heat source at its root. By actively adopting these next-generation key devices, we are taking a new approach to the heat generation issues that have traditionally been a challenge.
