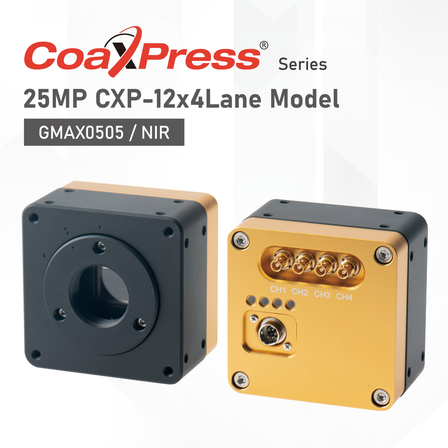

[For Research and Development] 25MP Near-Infrared Camera | High QE at 850–940nm
High-resolution NIR camera that accelerates the visualization of material analysis.
In the field of research and development, material analysis requires the visualization of the internal structure and composition of materials, as well as a detailed analysis of their properties. In particular, analysis using near-infrared light is important for obtaining information about the internal structure and chemical bonds of materials. However, conventional cameras have faced challenges due to insufficient resolution and sensitivity, resulting in inadequate data. This product opens up new possibilities in material analysis by incorporating a CMOS sensor that balances high resolution and speed while enhancing near-infrared sensitivity. 【Application Scenarios】 - Observation of internal structures of materials - Visualization of chemical reactions - Non-destructive testing 【Benefits of Implementation】 - High quantum efficiency (QE) in the 850–940nm range - Detailed analysis due to high resolution - Easier capture of dynamic phenomena through high-speed imaging - Increased information acquisition due to improved near-infrared sensitivity
basic information
【Features】 - GMAX0505 Near Infrared (NIR) compatible - Maximum output of 150.3 fps with CXP-12×4Lane connection - Supports C-mount while maintaining high resolution - 70mm square housing - Fanless - Actively adopts next-generation key devices to achieve low power consumption and low heat generation
Price range
Delivery Time
Model number/Brand name
BC-GN25M12X4
Applications/Examples of results
Various inspection and monitoring applications using near-infrared wavelengths (monitoring systems, food, medical, etc.)
Related Videos
Line up（1）
| Model number | overview |
|---|---|
| BC-GN25M12X4 | 25MP / NIR / 150.3fps / CXP-12 / C mount / Micro-BNC connector |
catalog（3）
Download All Catalogs
Recommended products
Distributors
We focus on the design, development, manufacturing, and sales of high-speed, high-resolution, and highly reliable machine vision cameras primarily using CoaXPress and CameraLink. In addition to developing standard products, we also offer development and customization tailored to customer requests. All camera design and development is carried out by our Japanese staff, ensuring design and production techniques that guarantee delicate and highly reliable standards in Japan, while integrating the dynamic action and speed of China to provide competitive products. At Japan Bopixel, we have successfully become the first camera manufacturer to utilize Ultra Low Power FPGA instead of the standard FPGA adopted by the majority of camera manufacturers. This Ultra Low Power FPGA reduces power consumption by over 50% compared to similar class FPGAs, significantly lowering power consumption and heat generation in cameras by addressing the heat source at its root. By actively adopting these next-generation key devices, we are taking a new approach to the heat generation issues that have traditionally been a challenge.
