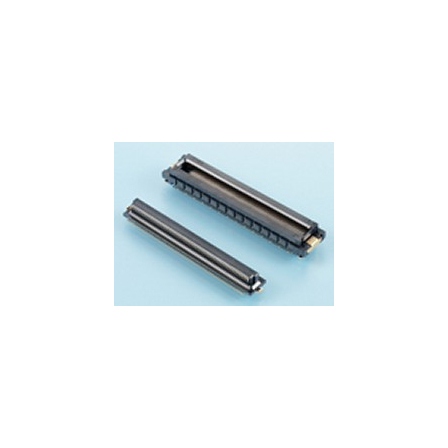

0.5mm pitch floating connector "DY series"

In the medical device industry, the advancement of miniaturization and high functionality has made high-density mounting on circuit boards increasingly important. Particularly in devices that require precise operation and stable signal transmission, the reliability of connector connections is a crucial factor that influences product performance. Malfunctions due to poor contact can lead to significant risks from a safety perspective. The 0.5mm pitch floating connector "DY Series" ensures a floating amount of ±0.5mm in the XY direction despite its narrow pitch, accommodating high-density mounting environments by absorbing positional misalignment. Additionally, its design with an effective mating length of 1.25mm achieves stable contact reliability, supporting the secure connections required in precision instruments. 【Application Scenes】 - CT Scanners - MRI Machines - Ultrasound Diagnostic Devices - Endoscopes - Electrocardiogram Devices - Ophthalmic Equipment - X-ray Diagnostic Devices 【Benefits of Implementation】 - Supports miniaturization and high-density of devices - Ensures high connection reliability - Provides stable signal transmission performance - Improves productivity through compatibility with automated mounting

Related Link - https://www.kel.jp/product/product_detail/id=369

basic information

【Features】 ○ The floating amount is secured at ±0.5mm in the XY direction. ○ It has a high-reliability design with an effective mating length of 1.25mm (nominal value). ○ It ensures a suction surface and supports automatic mounting. ○ Nine types are available, ranging from 30 pins to 140 pins. * Please note that the number of supported pins varies by product type. ○ It supports stack connections and vertical connections. ○ Ten types of stack heights are available, ranging from 5mm to 14mm. * Please note that the supported stack height varies by product type. ○ The fixing bracket has a shape that forms a large fillet, ensuring mechanical strength during insertion and removal. ○ A dust cap version is also available for the plug side.

Price information

The price varies depending on the quantity, so please feel free to contact us.

Delivery Time

Please contact us for details

Delivery times may vary depending on quantity and order status, so please feel free to contact us.

Model number/Brand name

DY Series

Applications/Examples of results

In-vehicle equipment, industrial equipment, imaging equipment, office automation equipment, analytical equipment.

Line up（130）

Model number overview
DU00-030SB Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 30 poles
DY00-040SB Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 40 pins
DY00-050SB Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 50 contacts
DY00-060SB Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 60 pins
DY00-080SB Floating connector / 0.5mm pitch / SMT straight / receptacle / without boss / 80 pins
DY00-090SB Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 90 pins
DY00-100SB Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 100 poles
DY00-120SB Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 120 pins
DY00-140SB Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 140 pins
DY00-030SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 30 contacts / 500 pieces per reel
DY00-040SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 40 pins / 500 pieces per reel
DY00-050SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 50 pins / 500 pieces per reel
DY00-060SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 60 pins / 500 pieces per reel
DY00-080SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 80 pins / 500 pieces per reel
DY00-090SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 90 pins / 500 pieces per reel
DY00-100SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 100 pins / 500 pieces per reel
DY00-120SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 120 pins / 500 pieces per reel
DY00-140SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / no boss / 140 pins / 500 pieces per reel
DY01-030SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 30 pins
DY01-040SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 40 pins
DY01-050SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 50 pins
DY01-060SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 60 pins
DY01-080SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 80 pins
DY01-090SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 90 pins
DY01-100SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 100 pins
DY01-120SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 120 contacts
DY01-140SB Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 140 pins
DY01-030SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 30 pins / 500 pieces per reel
DY01-040SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 40 pins / 500 pieces per reel
DY01-050SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 50 pins / 500 pieces per reel
DY01-060SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 60 contacts / 500 pieces per reel
DY01-080SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 80 pins / 500 pieces per reel
DY01-090SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 90 pins / 500 pieces per reel
DY01-100SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 100 pins / 500 pieces per reel
DY01-120SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 120 contacts / 500 pieces per reel
DY01-140SB-A Floating connector / 0.5mm pitch / SMT straight / receptacle / with boss / 140 pins / 500 pieces per reel
DY10-030S-1 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 30 pins
DY10-040SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 40 pins
DY10-050SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 50 pins
DY10-060SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 60 pins
DY10-080SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 80 pins
DY10-100SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 100 pins
DY10-120SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 120 pins
DY10-140SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 140 pins
DY10-030S-1-A Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 30 pins / 500 pieces per reel
DY10-040SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 40 pins / 500 pieces per reel
DY10-050SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 50 pins / 500 pieces per reel
DY10-060SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 60 pins / 500 pieces per reel
DY10-080SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 80 pins / 500 pieces per reel
DY10-100SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 100 pins / 500 pieces per reel
DY10-120SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 120 pins / 500 pieces per reel
DY10-140SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 5mm / 140 pins / 500 pieces per reel
DY10-030SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 6mm / 30 pins
DY10-040SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 6mm / 40 pins
DY10-050SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 6mm / 50 pins
DY10-060SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 6mm / 60 pins
DY10-080SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / without boss / stack height 6mm / 80 pins
DY10-100SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 6mm / 100 pins
DY10-120SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 6mm / 120 pins
DY10-140SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 6mm / 140 pins
DY10-030SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 7mm / 30 pins
DY10-040SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / without boss / stack height 7mm / 40 pins
DY10-050SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 7mm / 50 pins
DY10-060SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 7mm / 60 pins
DY10-080SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 7mm / 80 pins
DY10-100SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 7mm / 100 pins
DY10-120SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 7mm / 120 pins
DY10-140SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 7mm / 140 pins
DY10-060SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 8mm / 60 pins
DY10-080SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 8mm / 80 pins
DY10-100SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 8mm / 100 pins
DY10-120SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 8mm / 120 pins
DY10-140SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 8mm / 140 pins
DY10-060SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 9mm / 60 pins
DY10-080SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 9mm / 80 pins
DY10-100SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / without boss / stack height 9mm / 100 pins
DY10-120SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 9mm / 120 pins
DY10-140SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 9mm / 140 pins
DY10-060SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 10mm / 60 pins
DY10-080SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 10mm / 80 pins
DY10-100SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 10mm / 100 pins
DY10-120SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 10mm / 120 pins
DY10-140SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / no boss / stack height 10mm / 140 pins
DY11-030SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 30 pins
DY11-040SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 40 pins
DY11-050SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 50 pins
DY11-060SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 60 pins
DY11-080SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 80 pins
DY11-100SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 100 pins
DY11-120SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 120 pins
DY11-140SB-1 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 140 pins
DY11-030SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 30 pins / 500 pieces per reel
DY11-040SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 40 pins / 500 pieces per reel
DY11-050SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 50 pins / 500 pieces per reel
DY11-060SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 60 pins / 500 pieces per reel
DY11-080SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 80 pins / 500 pieces per reel
DY11-100SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 100 pins / 500 pieces per reel
DY11-120SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 120 pins / 500 pieces per reel
DY11-140SB-1-A Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 5mm / 140 pins / 500 pieces per reel
DY11-030SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 6mm / 30 pins
DY11-040SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 6mm / 40 pins
DY11-050SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 6mm / 50 pins
DY11-060SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 6mm / 60 pins
DY11-080SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 6mm / 80 pins
DY11-100SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 6mm / 100 pins
DY11-120SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 6mm / 120 pins
DY11-140SB-2 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 6mm / 140 pins
DY11-030SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 7mm / 30 pins
DY11-040SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 7mm / 40 pins
DY11-050SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 7mm / 50 pins
DY11-060SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 7mm / 60 pins
DY11-080SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 7mm / 80 pins
DY11-100SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 7mm / 100 pins
DY11-120SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 7mm / 120 pins
DY11-140SB-3 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 7mm / 140 pins
DY11-060SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 8mm / 60 pins
DY11-080SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 8mm / 80 pins
DY11-100SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 8mm / 100 pins
DY11-120SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 8mm / 120 pins
DY11-140SB-4 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 8mm / 140 pins
DY11-060SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 9mm / 60 pins
DY11-080SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 9mm / 80 pins
DY11-100SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 9mm / 100 pins
DY11-120SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 9mm / 120 pins
DY11-140SB-5 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 9mm / 140 pins
DY11-060S-6 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 10mm / 60 pins
DY11-080SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 10mm / 80 pins
DY11-100SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 10mm / 100 pins
DY11-120SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 10mm / 120 pins
DY11-140SB-6 Floating connector / 0.5mm pitch / SMT straight / plug / with boss / stack height 10mm / 140 pins
