High-precision touch probe T25P
High-precision probe with a repeatability accuracy of 0.25 µm (2σ) using a piezoelectric element.

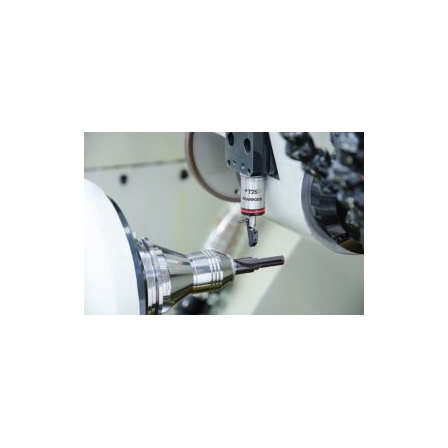

The T25P is based on piezoelectric technology, guaranteeing remarkable accuracy and a repeatability within 0.25 µm (2σ). The T25P is designed to control workpieces with complex surface shapes, such as cutting edges and gears. Furthermore, its design and astonishing precision make it a solution for probing workpieces on polishers and grinders.
basic information
The T25P is a compact wired touch probe with a length of 40mm and a diameter of 25mm, making it ideal for precise measurements in applications such as sharpeners and grinding machines. This probe provides robustness and reliability even in the most demanding working environments. The T25P receives and processes signals from the probe and operates by directly relaying them to the CNC of the machine tool via the E32U standard interface.
Price range
P3
Delivery Time
OTHER
Model number/Brand name
Marpos MIDA T25P
Applications/Examples of results
・Ultra-high precision machining center ・Ultra-high precision lathe ・Ultra-high precision grinding machine
