CCD camera-equipped non-contact tool measurement system 'VTS WF'
Expanding the measurement area while maintaining top-class repeatability and measurement performance. Ideal for measuring grinding tools and special-shaped tools, as well as wear management.

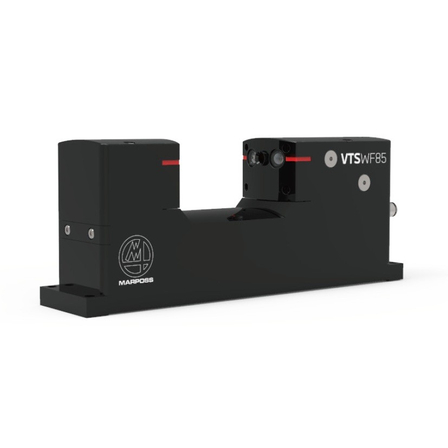

The "VTS WF (Wide Field)" is a non-contact imaging camera tool setter optimized for measuring special tools that are crucial for ultra-high precision machining on CNC machines. It is specifically designed for applications in high-precision turning centers and lathes. Depending on the frame range size, it can measure tools with a diameter of up to 2.9 mm for double-sided and up to 80 mm for single-sided. An air shutter covers and protects the optical lens, designed with consideration for harsh machine environments. The camera tool setter can also be used to measure complex-shaped tools and grinding tools, such as grinding wheels, which are difficult to measure with other tool setters. It enables the measurement and management of tools that require high quality and machining precision, which have previously been challenging to automate (unmanned), contributing to increased production efficiency and reduced labor. *For more details, please refer to the PDF document or feel free to contact us.*
basic information
【Specifications (Partial)】 ■ Shutter operation: Air-driven ■ Measurable diameter (for VTS WF-85) ・ min: 40μm ・ max: 2.9mm double side / 80mm single side ■ Resolution: 0.4μm ■ Relative humidity: 90% max ■ Protection rating (IEC 60529): IP67 * For more details, please refer to the PDF document or feel free to contact us. ------- ● Exhibition Participation Announcement MECT 2025 (Mechatrotech) @ Port Messe Nagoya (Hall 3, Booth No.: 3D49) We will be exhibiting at "MECT 2025" for four days from October 22 (Wednesday) to October 25 (Saturday), 2025. We will introduce the VTS, a non-contact tool measurement device equipped with a CCD camera and a new feature "Tool Surface Wear Inspection Function." We look forward to seeing you at our booth.
Price information
Please feel free to contact us.
Price range
P5
Delivery Time
OTHER
Applications/Examples of results
- Fields requiring higher precision than laser-type tool setters - Measurement of tool length and outer diameter of grinding wheels, as well as management of tool information in grinding processes - Wear measurement of specific areas on special-shaped tools and management of tool information
