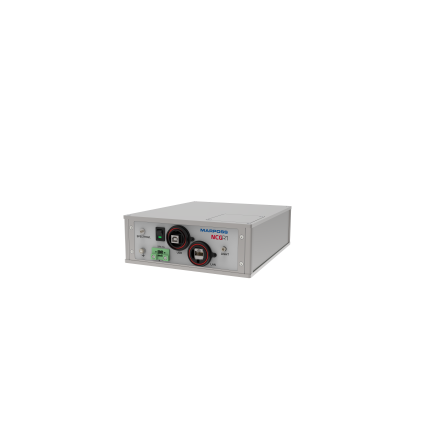

High-precision non-contact gauge for measuring nano-layer film thickness 'NCG-R'
Thickness measurement is possible from thick wafers to ultra-thin wafers (less than 1μm).
Non-contact measurements with high precision are achieved without damaging the measured object. Thickness measurements can be performed with extremely high resolution on all types of surfaces and materials, including highly reflective surfaces. The NCG-R system, equipped with a dedicated optical sensor, is designed with high protection performance (such as an enclosure compliant with IP standards), making it suitable for a wide range of applications from post-manufacturing inspections to in-process inspections. Thickness measurements of thin films, coatings, and nano-layers are the standout features of the NCG-R system, demonstrating exceptional performance. The NCG-R controller (visible light type) is compatible with all types of sensor heads, achieving optimized performance tailored to the measurement range and operating environment (such as working distance and spot size).
basic information
Please refer to the catalog download for the specifications.
Price information
Please feel free to contact us.
Delivery Time
Model number/Brand name
NCG-R
Applications/Examples of results
This is the optimal solution for any field that requires non-contact measurement with extremely high precision, such as the semiconductor industry, medical devices, and electronic components. It is also capable of detecting ultra-thin film layers at the nanometer scale. Examples of applications: - Semiconductor manufacturing industry: Thin films on wafers - Control during processing by back grinding or CMP - 3C industry: Coating technology for substrates and flexible electronic components
