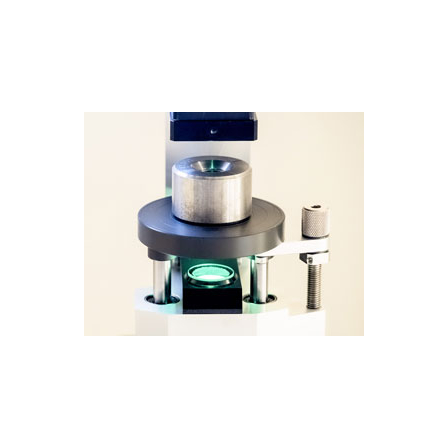

Dice Diameter Measurement Device "D-Lab"
Measure dice diameter easily, quickly, and with high precision. Achieve stable and high-precision measurements in just 1 second, regardless of skill level.
D-Lab is a high-performance and user-friendly die diameter measurement device. It employs a telecentric optical system, LED collimated lighting, and image analysis using a 2D CMOS sensor to measure the diameter and ovality of dies with high precision and non-contact. Equipped with a robust all-in-one PC, it provides stable and reproducible measurement results in a factory environment, independent of the operator's skill level. ■ Features Management of various types of dies: Supports measurement of different types of dies without reconfiguration. Rapid quality assessment: Instant pass/fail determination through color display by comparing with set reference values and tolerance ranges. Data management and report generation: PC storage of measurement results, output in CSV/text format, and printing of statistical reports. *For more details, please refer to the PDF document or feel free to contact us.
basic information
For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
AEROEL
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Line up（2）
| Model number | overview |
|---|---|
| D-Lab | Measurement range: 0.5 to 8 mm, maximum workpiece size: diameter 95 mm, height 50 mm. |
| D-Lab L | Measurement range: 0.25 to 10mm, maximum workpiece size: diameter 100mm, height 75mm. |
