Micrometer for measuring the diameter of grinding parts, etc. 'TABLE GAUGE'
Rapid, high-precision, and easy measurements on the desktop. A non-contact laser micrometer that measures outer diameter, roundness, and concentricity in seconds.

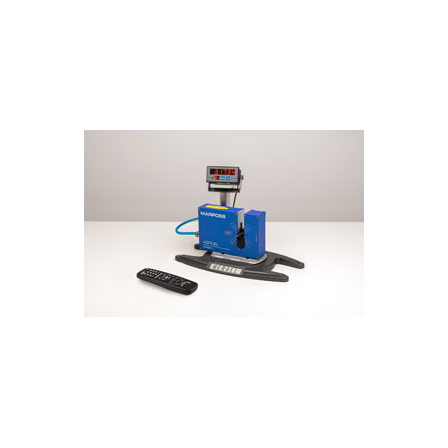

TABLE-GAUGE is a measurement system that configures the Xactum Intelligent Laser Gauge as a tabletop micrometer. It consists of dedicated software, a display unit, a remote control, work fixtures, and a base plate. It enables high-precision measurements that previously required expensive equipment and specialized technicians in measurement rooms to be performed quickly and easily by anyone on-site. ■Features - Check the following items of ground and turned products in just a few seconds: - Measurement of outer diameter and ovality (roundness) - Measurement of center position and concentricity of cross-sections - Determination of pre-set tolerances - Transfer of measurement data to a PC (via RS232 or Ethernet connection) *For more details, please refer to the PDF document or feel free to contact us.
basic information
For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
AEROEL
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Line up（2）
| Model number | overview |
|---|---|
| TABLE-GAUGE X | Laser irradiation and measurement from one direction. Maximum repeatability accuracy: ± 0.1 µm (X40), maximum measurable diameter: 149 mm (X150). |
| TABLE-GAUGE XY | Simultaneous laser irradiation from two directions for measurement. Maximum repeatability accuracy: ± 0.03 µm (XY13), maximum measurable diameter: 32 mm (XY35). |
