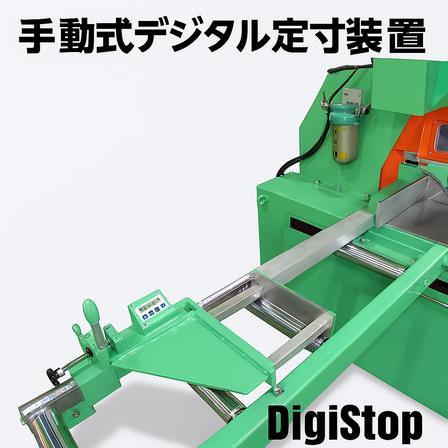

DigiStop SD Series | Manual Digital Length Measuring Device for Cutting Machines
The "SD Series" is a length stopper and measuring device designed to be attached to cutting machines for high-precision positioning of cutting pipes and aluminum profiles.
The operation is simple. Manually slide the main unit to determine the length, and fine-tune it with the handle. Anyone can intuitively operate it. ✅ Features - Compatible with all single-head cutting machines - Intuitive operation with a slide stop type equipped with a pit measure scale - A lift-up fixed stopper (optional) that does not hinder the insertion of long materials - An automatic retracting unit to prevent re-cutting by the saw blade (optional) ✅ Digital Specifications - Length displayed on a digital display panel - Memory retention of displayed values even when the display is off - Resolution: 0.1mm Three Reasons to Choose Us 1. Easy-to-read digital display, making dimensions clear at a glance! It features a built-in LCD display that automatically lights up just by moving it. Battery-operated, no wiring is needed, making installation smooth. 2. High-precision cutting in 0.1mm increments Achieves high measurement accuracy with a magnetic scale. It remains stable and resistant to deviation even after long-term use, supporting consistent work. 3. Safe design to prevent incorrect cuts Equipped with a pit measure for visual confirmation. It allows for comparison with the digital display, effectively preventing errors and mistakes.
basic information
【SD Series (with Digital Display)】 - Stopper travel guide: 25×50mm square steel material - Maximum measurement length: 2000/3000/4000/5000/6000 mm (selectable) - Dimension measurement: Magnetic scale - Dimension display: LCD digital display (6 digits) - Display accuracy (resolution): 0.1mm - Repetition accuracy: ±0.1mm - Battery: AA battery x2 (DC3V) - lasts approximately 1 year - Operating temperature range: 0 to 60°C (no condensation) - Roller material: Steel (can be changed as an option) 【S Series (without Digital Display)】 - Pit measure specification (with pointer, in 1mm increments) Optional Items - Extension auxiliary ruler for short lengths - Flip-up fixed stopper - Material guide (hard chrome plating) - Roller change (hard chrome plating / resin) - Punched metal plate laying (between rollers)
Price range
Delivery Time
Model number/Brand name
SD - XX (length selection) ・Digital stopper
Applications/Examples of results
- Profile cutting of sashes and building materials - Length determination in mass processing of aluminum frames - Can be utilized as an additional unit for on-site cutting machines and can be attached to various cutting machines. - Circular saw / metal saw / band saw / press machine
Detailed information
Related Videos
Line up（8）
| Model number | overview |
|---|---|
| SD-20 Standard Type | Digital display equipped, maximum movable length 2000 mm. |
| SD-30 Standard Type | Digital display equipped, maximum movable length 3000 mm. |
| SD-40 Standard Type | Digital display equipped, maximum movable length 4000 mm. |
| SD-50 Standard Type | Digital display equipped, maximum movable length 5000 mm. |
| SD-60 Standard Type | Digital display equipped, maximum movable length 6000 mm |
| SD-20M Metal Saw Attachment Type | Stopper lift type | With digital display, maximum movable length 2000 mm |
| SD-30M Metal Saw Attachment Type | Stopper lift type | With digital display, maximum movable length 3000 mm |
| SD-40M Metal Saw Attachment Type | Stopper with lift-up type | With digital display, maximum movable length 4000 mm |
