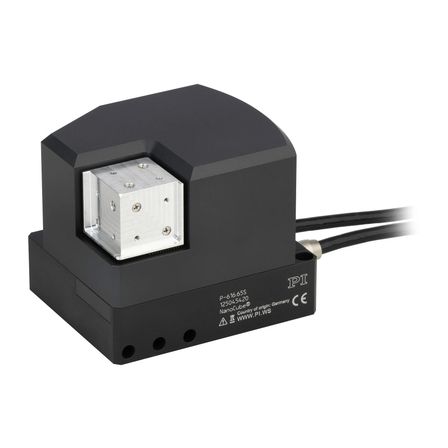

NanoCube 6-Axis Piezo System for Optical Applications
Achieving fine adjustment of optical systems with 6-axis nanopositioning.
In optical field adjustment work, precise positioning of the optical axis is a crucial factor that influences the performance of the system. Particularly in fiber alignment and the arrangement of optical elements, accurate adjustments at the sub-micron level are required. Conventional stages often have limited degrees of freedom for adjustment, making high-precision positioning difficult. The NanoCube 6-axis piezo system P-616.65S addresses these challenges with its six degrees of nano control. 【Application Scenarios】 - Fiber alignment - Position adjustment of optical elements - Precision instruments such as microscopes 【Benefits of Implementation】 - Enables fine positioning at the nanometer level - Achieves stable adjustments with high rigidity and low crosstalk - Reduces maintenance costs through long-term stable operation
basic information
**Features** - Smooth and highly responsive operation due to a flexure guide structure with no friction or backlash - Equipped with PICMA piezo actuators that excel in moisture resistance and insulation - Long lifespan, maintenance-free, and ideal for long-term stable operation **Our Strengths** Based on precision control technology cultivated over more than 50 years at our headquarters in Germany, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide. With a rich lineup and technical expertise, we offer optimal solutions tailored to our customers' needs.
Price range
Delivery Time
Model number/Brand name
P-616.65S
Applications/Examples of results
- Photonics / Integrated Optics - Precise fiber positioning and alignment → Fiber-to-fiber coupling → Fiber-to-chip coupling → Fiber-to-component coupling → Fiber array alignment
Recommended products
Distributors
The German headquarters, with over 50 years of experience and 30 years as a Japanese corporation, presents new solutions from PI, a company specializing in precision positioning products. We offer the world's number one piezo stages and actuators, as well as hexapod positioning products. Additionally, we are enhancing our lineup of linear motor-driven products and high-precision air bearing stages. In positioning, attention to the foundation is also crucial, and we provide granite bases, enabling us to propose composite systems as well. Please take a look at our diverse lineup that provides cutting-edge technology to production sites around the world, advanced equipment, and various fields of cutting-edge research.
