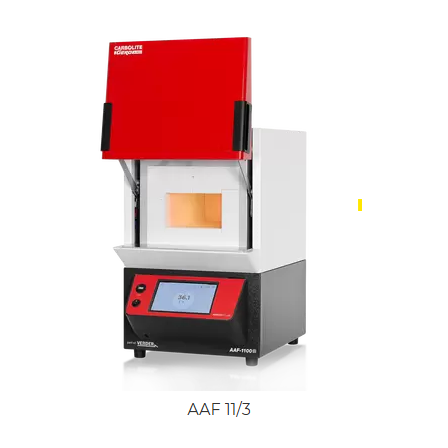

Electric furnace Ashing furnace 'AAF3 & 7'
Common operating temperature up to 1000℃, maximum temperature up to 1100℃! Suitable for samples such as food, resin, coal, and carbohydrates.
The "AAF3&7" is an ashing furnace designed to achieve optimal ashing conditions for the complete combustion of samples. The air flow required for ashing is preheated and introduced into the furnace, and to prevent carbon from adhering to the heater section, the heater is protected with tiles made of hard alumina or silicon carbide. It complies with ISO1171:2010, ASTM D3174-04:2010, and ASTM D4422 standards. 【Standard Specifications (Partial)】 ■ Operating temperature 1000°C (maximum temperature 1100°C) ■ Programmable EPC3016P1 controller ■ Suitable for samples such as food, resins, coal, carbohydrates, etc. ■ Designed in accordance with ISO1171:2010, ASTM D3174-04:2010, and ASTM D4422 standards ■ The heater section is protected by a hard alumina shielding plate to prevent chemical and mechanical damage *For more details, please refer to the related links or feel free to contact us.
basic information
【Other Standard Specifications (Partial)】 ■ Efficient heating structure from four sides (both left and right sides, ceiling, and furnace floor) ■ Proper air intake and exhaust pipe allow for an air flow capacity of 4 to 5 times the chamber volume per minute, enabling ideal ash treatment ■ Low ceiling height inside the furnace directs air flow near the sample, allowing for optimal combustion ■ Adoption of a powerful special heater compensates for heat loss due to high air flow ■ Preheating the air before it enters the furnace helps maintain a good temperature distribution inside the furnace ■ Sample tray with handle for easy insertion and removal *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
