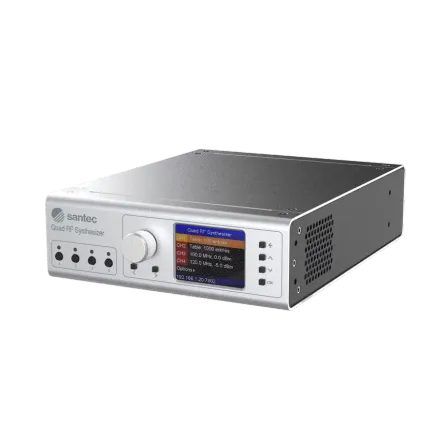

4-Channel RF Synthesizer QRF Series | Equipped with DDS
Achieved phase-coherent 4-channel RF signal generation using DDS technology. An RF synthesizer optimal for AOM control and optical control systems for quantum technology.
Flexible Multi-Channel RF Signal Generation for Scalable Optical Control Systems The QRF series is a robust and cost-effective 4-channel RF synthesizer designed for general-purpose acousto-optic modulation (AOM) and optical control applications. Based on digital direct synthesis (DDS) technology, it features phase-coherent RF signal generation and built-in amplification, contributing to the simplification of system design. With flexible modulation capabilities and intuitive operability, it enables reliable scalable RF distribution in experimental setups that require multi-channel configurations.
basic information
- 4-channel synchronized RF output - Phase-coherent signal generation using DDS - Built-in RF power amplification function - Low jitter TTL pulse generation support - AM/FM/PM modulation support - Equipped with PID control function - USB/Ethernet communication support - Ideal for AOM control systems 【Related Products】 - High-speed RF Synthesizer XRF | Supports high-speed frequency switching An RF synthesizer for high-speed AOM control and quantum optics experiments. https://inst.santec.com/jp/products/quantum-instruments/electronics/xrf - Compact Laser Controller mLC | Laser control support A compact laser controller for quantum optics and precision measurement. https://inst.santec.com/jp/products/quantum-instruments/electronics/mlc
Price range
Delivery Time
Model number/Brand name
QRF
Applications/Examples of results
- Acousto-optic modulator (AOM) control - Multi-beam optical system control - Laser frequency shifting - Laser frequency stabilization - Quantum optics experiments - Atomic physics experiments - Timing control - Pulse sequence generation - Integration into optical control systems
Detailed information
-
<Phase-Synchronized 4-Channel RF Output> By synchronizing and generating four RF outputs, stable light control is achieved in multi-beam optical systems and quantum optical experiments.
-
<Directly Driving AOM> With built-in RF power amplification capabilities, it can directly drive many AOMs without external amplifiers. This contributes to the simplification of system configuration.
-
<Flexible Modulation Function> In addition to AM, FM, and PM modulation, it also supports PID control and pulse generation. Achieves high-precision control through low-jitter TTL switching.
-
<Wideband Frequency Response> Optimized for the operating bandwidth of typical AOMs, it supports variable frequency shifts.
-
<Integration with Automation Systems> Controllable via USB or Ethernet. Supports Python, MATLAB, and LabVIEW, making it easy to integrate into experimental equipment and automatic control systems.
