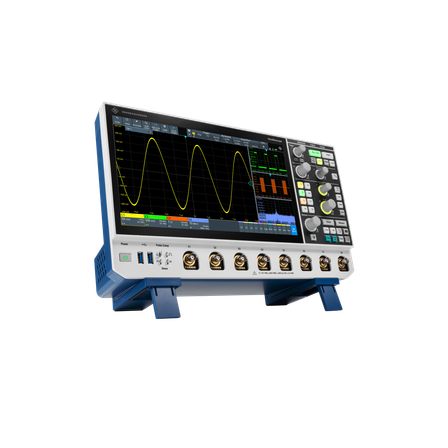

Oscilloscope "R&S MXO 5 Series" <New Product>
Achieving an update speed of 4.5 million waveforms per second, equipped with 500 million points of long memory and a digital trigger system across all 8 channels.
The "R&S MXO 5 Series" is a high-speed, accurate signal analysis oscilloscope with a maximum of 8 channels, achieving an update rate of 4.5 million waveforms per second. Each channel is equipped with a digital trigger system with a minimum vertical axis of 0.0001 div. The system architecture, which realizes 18-bit vertical axis resolution, ensures reliable triggering even for minute waveforms. 【Features】 ■ Performs 45,000 FFTs per second, capable of simultaneous analysis of up to 4 spectra ■ Standard memory of 500M points is parallelly equipped for each channel ■ Equipped with a 15.6-inch full HD capacitive touchscreen ■ Available in 8-channel and 4-channel models ■ Bandwidth: 8 channels: 100MHz to 2GHz, 4 channels: 350MHz to 2GHz A live demo showcasing the clear performance differences from conventional models is currently available on our website. *For more details, please check our website. Feel free to contact us with any inquiries.
basic information
【Other Features】 ■ Achieves low noise with a vertical sensitivity of at least 500μV/div ■ Captures up to 99% of waveforms with a trigger rearming time of less than 21ns ■ Up to 1 million waveform segments available *For more details, please refer to the documentation. Feel free to contact us with any inquiries.
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
Related Videos
catalog（2）
Download All Catalogs
News about this product（2）
-
Rohde & Schwarz announces three-phase power analysis software for the MXO series oscilloscopes.
Rohde & Schwarz provides power analyzer-level analysis capabilities to the MXO series oscilloscopes with the new R&S MXO-K333 three-phase power analysis software option. Designed for engineers developing and debugging three-phase AC systems, this option combines numerical results with key power measurements and waveform visualization, allowing for a quick correlation between power behavior and actual signal events, thereby streamlining the investigation of issues.
-
Integration of Chroma and MXO oscilloscopes into the ATS 8000 platform to enhance the high-performance power test ecosystem.
Rohde & Schwarz's MXO series oscilloscopes are now supported by Chroma's Power Conversion Device Automated Test System Model 8000 (ATS 8000). This integration addresses the increasingly complex testing requirements in high-power, multi-channel applications, including power systems used in AI data center infrastructure. Power electronics engineers using the ATS 8000 platform for automated testing and system integration will be able to leverage the advanced real-time waveform capture capabilities of the next-generation MXO oscilloscopes within their existing test environments.
