Fluorine coating for rubber gaskets | Prevents sticking and adhesion, reducing disassembly labor.
Low-temperature sintering that does not compromise the flexibility of rubber. Strongly prevents adhesion to the counterpart material even after long-term pressing! Significantly reduces labor for regular equipment inspections and replacement work.

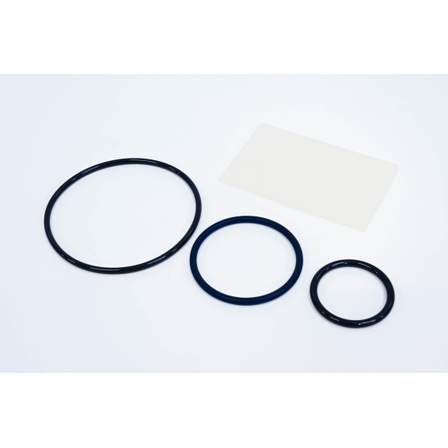

This is a technical case study of our low-temperature sintering type fluoropolymer coating "FU-2015" applied to silicone rubber O-rings and packing materials used as seals (sealing) for pipes, valves, and sealed containers. While maintaining the unique flexibility and resilience (elasticity) of rubber, a functional thin film with excellent film-following properties is uniformly formed on the surface. **Main Improvement Effects from Implementation** - **Prevention of Sticking and Adhesion Due to Long-Term Compression** Even under strong clamping conditions, it prevents the rubber from adhering to the counterpart materials (metal and resin). This helps prevent packing breakage and residue adhesion during disassembly. - **Blocking Thermal Degradation of Rubber with Room Temperature Curing (Low-Temperature Sintering)** Since high-temperature sintering (300°C to 400°C) is unnecessary, it imparts functionality without altering or degrading the physical properties and elasticity of silicone rubber. - **Significant Reduction in Maintenance and Replacement Work** Eliminates the need to scrape off adhered rubber. This greatly streamlines equipment overhauls and packing replacement tasks, reducing downtime.
basic information
【Construction Technology】 Low-temperature sintering (room temperature curing type) fluorine coating "FU-2015" 【Technical Features and Functions】 ● Excellent non-stick and release properties Physically prevents long-term adhesion (sticking) to metal and resin flanges. ● Room temperature curing and low-temperature film formation Minimizes thermal impact and thermal degradation on substrates (rubber, plastic, etc.). ● Excellent film followability and flexibility Follows the expansion, compression, and deformation of rubber, suppressing cracks and peeling of the coating. ● Maintenance of sealing properties Ensures the original sealing function and dimensional accuracy of O-rings through thin film coating. 【Applicable Substrates and Parts】 ● Various rubber components such as silicone rubber ● O-rings, gaskets, seals, diaphragms, rubber plugs, valve seating surfaces.
Price range
Delivery Time
Model number/Brand name
FU Series
Applications/Examples of results
【Main Application Areas and Equipment】 ● Chemical and Plant Equipment Chemical piping flanges, valve joints, sealing gaskets for reaction vessels ● Semiconductor Manufacturing Lines O-rings for connecting equipment and piping, sanitary piping gaskets ● Automotive and Industrial Machinery Sealing parts for various oil and water applications, rubber components for air cylinders 【Problem-Solving Case Studies】 ● Issue In sealing parts of various equipment and containers, silicone rubber O-rings were strongly pressed and adhered to the counterpart material (metal flanges), causing the gaskets to break during disassembly inspections and requiring significant time and labor to scrape off the adhered rubber for cleaning. Conventional fluorine coatings could not be applied due to thermal degradation of the rubber from high-temperature firing. ● After Implementation "FU-2015" was directly applied to the surface of the silicone rubber. ● Effects and Results: - Achieved non-stick properties while maintaining the elasticity of the rubber, allowing for smooth removal even after prolonged tightening. - Eliminated the need for removal and cleaning of adhesion, significantly reducing maintenance time (downtime).
