Wafer Internal Crack Inspection Device
Products after inspection can be guaranteed for quality! A wafer internal crack inspection device that captures invisible information and performs automatic judgment.

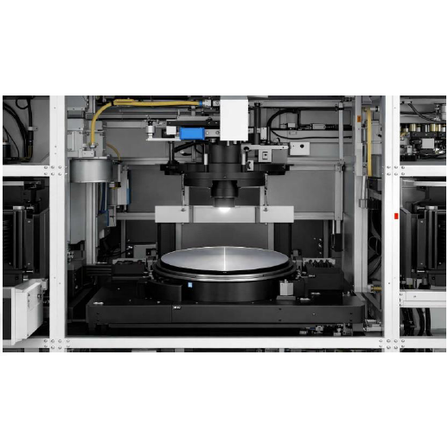

This product is a wafer internal crack inspection device that inspects internal cracks in the notch portion of semiconductor wafers using an SWIR camera. By utilizing an SWIR camera that can capture information not visible to the naked eye, it enables automatic data storage of inspection results, automatic classification of good/bad products, and alert output in the event of defects. Products inspected can be guaranteed for quality, and it accommodates everything from manual machines with hand loading to fully automated machines that operate 24 hours a day. 【Features】 ■ Inspects internal cracks in the notch portion of semiconductor wafers ■ Employs an SWIR camera capable of capturing information not visible to the eye ■ Enables automatic data storage and automatic classification of inspection results (good/bad) ■ Automatic alert output function in the event of defects ■ Accommodates everything from manual machines with hand loading to fully automated machines that operate 24 hours a day *For more details, please download the PDF or feel free to contact us.
basic information
【Configuration】 <Including rotating mechanism> ■ Scaler OP: 1.1/1.4-inch camera ■ Telecentric lens ■ Spot light source (including power supply) ■ θ stage (rotation angle 360 degrees) ■ Rotating housing ■ Camera lighting platform ■ Computer for image processing (monitor) ■ Emergency stop button <Image Section> ■ Camera: SWIR camera ■ Lens: Telecentric magnification 2x ■ Lighting: SWIR LED light ■ Lighting power supply: USB control via PC ■ Field of view size: Approximately 4.48mm x 3.36mm ■ Image composition function: X, Y axis and rotation ■ Pixel resolution: Approximately 1.6um/pixel ■ CAD comparison inspection: Optional *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■Internal crack inspection of the notch part of semiconductor wafers *For more details, please download the PDF or feel free to contact us.
